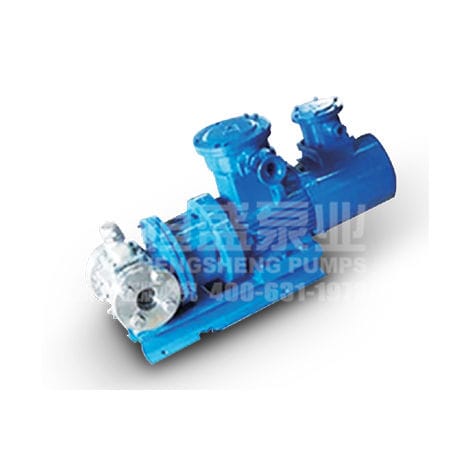

YCB magnetic drive gear pump
YCB magnetic drive gear pump uses:
It is suitable for fluid conveying of 5-1500 CST viscosity without solid particles and long fibers in petrochemical, coating, paper and resin industries. It is suitable for transportation of toxic and harmful, inflammable and explosive, polluting, volatile and heavy oil, mechanical oil, fuel oil, etc.
YCB magnetic drive gear pump features:
The external meshing low pressure gear system is totally sealed, no leakage, environmental protection, energy saving and high efficiency.
It is mainly composed of pump body, gear, shaft, magnetic drive part, safety valve and so on.
All parts in the pump are self lubricated by conveying medium.
Gear has high strength, hardness and wear resistance after heat treatment.
There is a reasonable pressure relief circuit in the pump to ensure that the gear is not trapped in the work.
Sliding bearings are made of suitable materials, which can withstand unbalanced radial hydraulic pressure of gears, have strong anti-pollution force, meet the requirements of non-lubricating chemical media, and have long service life.
