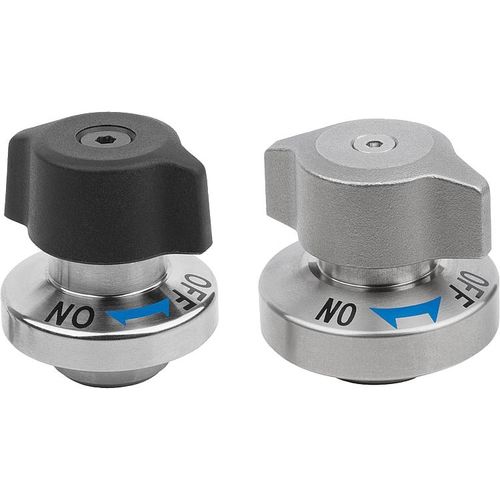

Quarter-turn latch K1561 series

steelstainless steelpolyamide

Quarter-turn latches are used for replacing and locking fixtures or hatches quickly and easily. Toolless clamping shortens setup times. Material: Housing steel or stainless steel. Rotary knob thermoplastic PA (polyamide) or stainless steel. Version: Housing nickel-plated or bright. Rotary knob PA fibreglass reinforced, black. Knob stainless steel, bright. Note: Stainless steel fastening screws M2 or M3 are included. Form A mounting option for plate thickness 6 mm. Form B mounting option for plate thickness > 6 to 14 mm. Type of operation: Check that the rotary knob is in the "OFF" position. Set the lift and turn latch over the clamping pin and turn the rotary knob to the "ON" position. When fully clamped, a click sound is heard. Accessory: Clamping pins K1564.
