Locating pin K0293 series

Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG
Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG
Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 2
Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 3
Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 4
Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 5
Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 6
Locating pin - K0293 series - HEINRICH KIPP WERK GmbH & Co. KG - image - 7
Add to favorites
Compare this product

Description

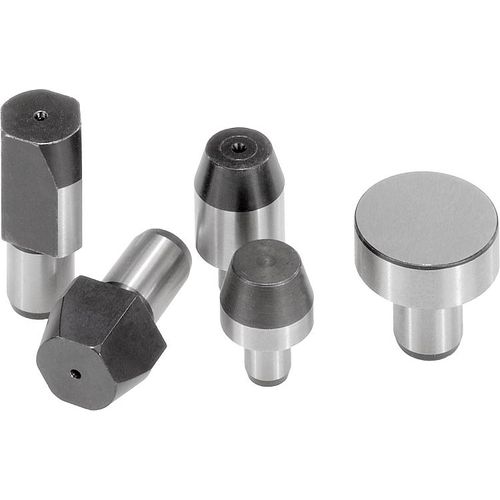

Material:Tool steel.Version:Hardened and ground.Note:Rest pads Form A are supports for workpieces and fixtures. Locating pins Form B are for positioning workpieces and fixture components in reamed holes. The flattened Form C can be used to bridge tolerances in hole spacing or to secure the part to be positioned in one direction only. Form A and B can also be used as hardened stops and as fixture feet. For similar pins see K0352, K0353, K0354 and K0355.Drawing reference: Form A: Rest pad Form B: Cylindrical locating pin Form C: Flattened locating pin
