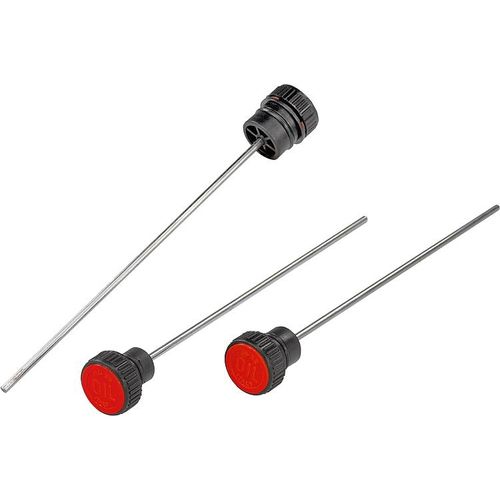

Round plug K0462 seriesmalepolyamidethermoplastic
Add to favorites
Compare this product
Characteristics
- Form
- round
- Type
- male
- Material
- polyamide, thermoplastic, NBR
- Function
- vent, filter
- Product applications
- oil, O-ring, housing, air, air, cap
- Diameter
30 mm
(1.18 in)- Operating temperature
100 °C
(212 °F)
Description
Material:Housing and cap thermoplastic polyamide 66.
Air filter polyurethane (PU foam).
Dipstick zinc.
O-ring NBR, Shore 70.Version:Housing black.
Cap red.
Filter mesh 50 µm.
Dipstick phosphated.Temperature range:Temperature resistant with oil up to 100°C.On request:Min-Max markings.Drawing reference:
Form A: without vent
Form B: with vent
Form C: with vent and air filter
1) O-ring
2) air filter Form C only
