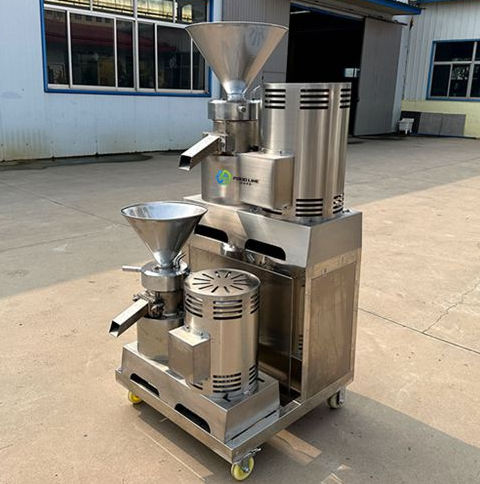

Vegetable industrial mixer grinder FL series

Overview
Industrial chilli paste production machine designed for continuous, hygienic processing of fresh or dried chillies and other spice inputs into ready-to-pack paste. Foodline models suit small to medium production lines and scale to higher outputs with larger configurations.

Key Product Information

• Product name: Foodline Chilli Paste Making Machine
• Intended users: food processors, sauce manufacturers, commercial kitchens, condiment producers
• Materials: 304/316 food-grade stainless steel; water-cooled components; high-speed stainless steel blades

Specifications

• FL-80 — Fineness: 50–100 mesh; Capacity: 70–100 kg/h; Motor: 4 kW; Dimensions: 640×410×900 mm
• FL-110 — Fineness: 100–200 mesh; Capacity: 300 kg/h; Motor: 7.5 kW; Dimensions: 700×430×980 mm
• FL-130 — Fineness: 100–200 mesh; Capacity: 400–600 kg/h; Motor: 11 kW; Dimensions: 830×440×1100 mm

Top Features

• High-speed blades for fine, uniform grinding and emulsification
• 304/316 food-grade stainless steel construction for hygiene and corrosion resistance
• Adjustable fineness control to obtain textures from coarse to ultra-fine
• Water-cooled system to prevent overheating during long runs
• Wide capacity range; larger configurations available up to ~2,000 kg/h
• Compatible with chilli, ginger, garlic, onion, tomato and other spice inputs

Industrial Applications

• Chilli sauce and hot sauce manufacturers
• Spice paste bottling and filling lines
• Commercial and industrial food processors
• Ready-to-cook / ready-to-eat meal production
• Pickle and condiment manufacturing units

How it works

• Load fresh or dried chillies and other raw ingredients into the hopper
• High-speed rotating blades grind and emulsify product to target fineness
• Internal water-cooling maintains processing temperature to preserve color and aroma
• Finished paste is discharged through an easy-clean outlet for packing or further processing

What's included

• Foodline Chilli Paste Making Machine
• Instruction manual and cleaning tools
• Optional accessories: extra blades, spare motor, custom hopper

Certifications & Warranty

• Manufacturer declares ISO and CE certifications
• Standard warranty: 12 months; lifetime technical support options available as stated by manufacturer

Technical specifications

• Model range: FL-80, FL-110, FL-130 (FL series)
• Fineness: 50–100 mesh (FL-80); 100–200 mesh (FL-110, FL-130)
• Capacity: 70–100 kg/h (FL-80); 300 kg/h (FL-110); 400–600 kg/h (FL-130); larger setups available to ~2,000 kg/h
• Motor power: 4 kW (FL-80); 7.5 kW (FL-110); 11 kW (FL-130)
• Dimensions (mm): 640×410×900 (FL-80); 700×430×980 (FL-110); 830×440×1100 (FL-130)
• Construction: 304/316 food-grade stainless steel; water-cooled system; high-speed stainless steel blades
