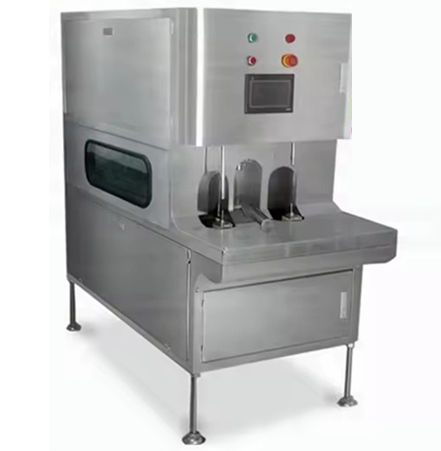

Mango peeler FL-MP01

for pomegranateknifeautomatic

Product Overview
Foodline Automatic Mango Peeler handles high volumes of mangoes with speed, repeatability and low waste. Designed for juice plants, fruit packing facilities and frozen fruit production lines, it uses precision blades and adjustable peeling settings to remove skins while preserving pulp. Constructed in food-grade Stainless Steel 304, the machine enables hygienic operation and straightforward cleaning. Tool-less disassembly of key components and an open, washdown-capable frame are provided; CIP options are available.

Applications

• Processing mangoes for slicing, pulping, juicing or packaging
• Also suitable for pomegranate, prickly pear, pomelo and similar fruits
• Intended for juice factories, fruit packaging plants and frozen fruit lines

How the Machine Works

• Fruit loading – Mangoes are fed into the infeed system.
• Automatic positioning – The machine clamps and positions fruit for precise peeling.
• Precision peeling – Rotary blades remove skin with adjustable depth while following the fruit contour.
• Output – Clean, ready-to-process mangoes delivered for downstream slicing, pulping or packaging.

Features

• High throughput: 1000–3000 pcs/h depending on configuration
• Consistent peel across varying fruit sizes and varieties via adjustable clamping and recipe presets
• Food-grade Stainless Steel 304 construction for hygiene and washdown
• Gentle handling design to minimize bruising and maximize yield
• Tool-less disassembly of key components for fast cleaning and maintenance
• Omron PLC control system for recipe presets and line integration
• Multiple infeed/outfeed and integration options to connect with existing lines
• Commissioning, operator training, spare parts and preventive maintenance plans available

Frequently asked questions

• Can it handle different mango sizes and varieties? Yes. Adjustable clamping and recipe presets accommodate a wide range of sizes and common varieties.
• How gentle is the peeling process? The system minimizes bruising through controlled gripping and contour-following peeling heads.
• What’s the typical yield? Yield depends on variety and ripeness; parameters can be tuned to the fruit profile to maximize recovery.
• Is it easy to clean? Yes. Tool-less disassembly of key components and an open, washdown-capable frame; CIP options are available.
• What utilities are required? Electrical power is required; many configurations also use compressed air and process water. Exact utilities depend on selected model and configuration.
• Can it integrate with an existing line? Yes. Infeed/outfeed options and control integration are available for seamless operation.
• What about support? Commissioning, operator training, spare parts and preventive maintenance plans are offered.
• Price and lead time: Pricing and lead time depend on configuration and volume; tailored quotes are provided according to chosen options and requirements.

Specifications

• Model: FL-MP01
• Application: Pomegranate, Prickly Pear, Pomelo, Mango, etc.
• Material: Stainless Steel 304
• Voltage supply: 380V / 3 Phase / 50Hz
• Power (Input): 3.0 kW
• Capacity: 1000-3000 pcs/h
• Rotating speed: 45-90 rpm
• Gross weight: 350 kg
• Machine dimensions (L×W×H): 2050 × 850 × 1550 mm
• Control system: Omron PLC system
