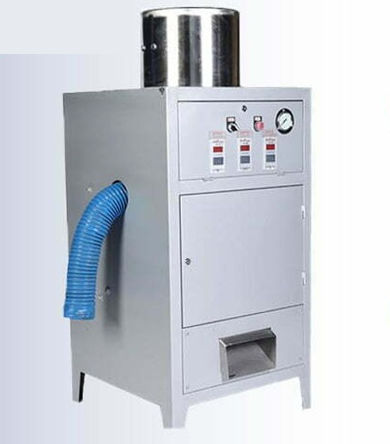

Garlic peeler FL series

pneumaticfully-automaticstainless steel

Overview
The Foodline Automatic Garlic Peeler is an industrial dry-peeling solution engineered for high-throughput garlic processing. It uses pneumatic (compressed air) airflow vortex technology to remove dry skins while preserving whole cloves, avoiding water, blades or chemicals. The system is suitable for automated production lines in food processing and spice manufacturing.

Key benefits

• High capacity for continuous, large-scale processing
• Dry pneumatic peeling preserves whole cloves and reduces bruising
• Food-grade 304 stainless steel construction for hygienic operation
• Low maintenance with a compact mechanical design and simple controls

Features

• Capacity: 100–300 kg/h (FL-100B) or 400–1000 kg/h (FL-200)
• Dry peeling technology: compressed air vortex — no water or blades
• Material: 304 food-grade stainless steel
• Control: automatic time and temperature settings for consistent output
• Peeling efficiency: ≥95% typical with integrated air compressor

How it works

• Bulb breaking: whole bulbs fed into a breaker with adjustable rollers to separate individual cloves.
• Clove sorting (optional): grading unit separates by size for optimized peeling performance.
• Automatic peeling: cloves enter the peeler where a high-velocity air vortex removes dry skins while keeping cloves intact.
• Washing & drying: optional bubble washing and hot-air drying stages remove residual skins/dust and reduce moisture.
• Packaging (optional): peeled cloves can be directed to vacuum or MAP packaging lines for retail, foodservice, or export.

Technical Specifications of Industrial Garlic Peeler
Model | FL-100B | FL-200
Voltage | 220V-50HZ | 220V-50HZ
Output | 100-300Kg/h | 400-1000Kg/h
Power | 500W | 500W
Air Compressor | 7.5KW | 15KW
Dimension(cm) | 60*60*125 | 65*95*175
Air flow | 2m³/min | 2m³/min
Air pressure | 8kg/cm2 | 8kg/cm2

Technical Specifications (Standard Line)
No | Name | Dimension | Power
1 | Elevator | 3000*500*1800mm | 0.75kw
2 | Garlic Breaker Machine | 1600*900*1200mm | 3kw
3 | Picking Line | 3500*800*800mm | 1.1kw
4 | Peeler Feeder Elevator | 2500*500*1600mm | 0.75kw
5 | Chain Peeler | 2800*800*1650mm | 1.85kw
6 | Picking Line | 4000*800*800 mm | 1.1kw

Applications

• Garlic processing plants
• Spice and seasoning manufacturers
• Frozen food producers and industrial kitchens

Technical characteristics / specifications

• Manufacturer / Brand: Foodline
• Commercial model series: FL series (examples: FL-100B, FL-200)
• Voltage: 220V-50HZ
• Output capacity: 100–300 kg/h (FL-100B); 400–1000 kg/h (FL-200)
• Rated power (peeler): 500W
• Required air compressor: 7.5KW (FL-100B) or 15KW (FL-200)
• Air flow: 2 m³/min
• Air pressure: 8 kg/cm²
• Material: 304 food-grade stainless steel
• Peeling rate: ≥95% (typical)
• Dry peeling method: pneumatic (compressed air) — no water, blades, or chemicals
• Production line components and dimensions: see standard line table
• Suitable for fully automated garlic peeling production lines
