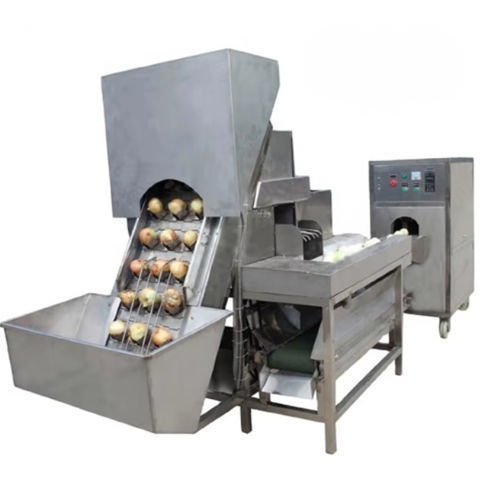

Onion peeler FL-YB-3kniferollerpneumatic
Add to favorites
Compare this product
Characteristics
- Food product
- onion
- Type
- knife, roller, pneumatic
- Operational mode
- automatic, fully-automatic
- Associated function
- for cutting
- Power supply
- 380V three-phase, 220V single phase
- Mass productivity
Max.: 2,500 kg/h
(5,512 lb/h)Min.: 2,000 kg/h
(4,409 lb/h)- Unit productivity
95 p/min
- Fruit/vegetable max size
80 mm
(3 in)- Motor power
Max.: 2.2 kW
(3 hp)Min.: 1.1 kW
(1.6 hp)- Machine length
2,370 mm
(93 in)- Machine width
1,200 mm
(47 in)- Machine height
1,770 mm
(70 in)- Machine weight
340 kg
(750 lb)
Description
Product overview
The onion peeling and root cutting machine is an automated vegetable processing unit combining high-speed peeling and precision root cutting to prepare onions for downstream processing.
Use case
Engineered for commercial and industrial food-processing lines, the unit automates removal of dry outer skins and trims root and stem ends to enable continuous, high-throughput production while preserving onion integrity.
Key features
Variants and configurations
Available as integrated peeler models with optional root-cutting units and automated material-handling configurations for industrial-scale plants.
FL-YQ-2 Onion Root Cutting Machine — brief
The FL-YQ-2 is a dedicated root-cutting module designed to trim both root and stem ends with consistent positioning and cutting accuracy for high-throughput lines.
Working principle
Technical parameters
Additional information
The onion peeling and root cutting machine is an automated vegetable processing unit combining high-speed peeling and precision root cutting to prepare onions for downstream processing.
Use case
Engineered for commercial and industrial food-processing lines, the unit automates removal of dry outer skins and trims root and stem ends to enable continuous, high-throughput production while preserving onion integrity.
Key features
- Compressed air — removes dry skin without mechanical cutting
- High-speed peeling system — minimal waste and controlled skin removal
- Automatic feeding & discharge — supports continuous line operation
Variants and configurations
Available as integrated peeler models with optional root-cutting units and automated material-handling configurations for industrial-scale plants.
FL-YQ-2 Onion Root Cutting Machine — brief
The FL-YQ-2 is a dedicated root-cutting module designed to trim both root and stem ends with consistent positioning and cutting accuracy for high-throughput lines.
Working principle
- Feeding system: Onions are fed via hopper or conveyor to individual processing stations
- Peeling section: High-pressure air jets or rotating rollers loosen and remove outer dry skins
- Root cutting system: Precision blades cut root and tail ends automatically
- Sorting and discharge: Processed onions are transferred to conveyor for further handling or packaging
Technical parameters
- Peeler model: FL-YB-3
- Peeler dimensions: 2.37 m × 1.20 m × 1.77 m
- Peeler power supply: 380V, 50Hz
- Air supply (peeler): ≥1.0 MPa
- Peeler power: 1.15 kW
- Peeler output: 2000–2500 kg/hour (onions 60–100 mm diameter)
- Peeler weight: 340 kg
- Root cutter model: FL-YQ-2
- Root cutter capacity: 90–100 pieces/minute
- Root cutter motor power: 2.22 kW
- Root cutter voltage: 220V, 60Hz
Additional information
- Fully automated process reduces manual handling and improves line consistency
- Suitable for commercial and industrial food-processing installations
- Designed to minimize product damage and reduce waste during peeling
