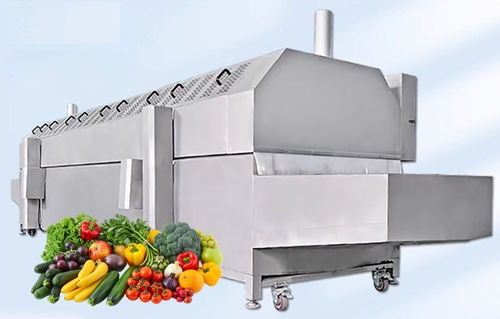

Industrial refrigeration tunnel TF series

air-cooled

Product overview
A tunnel blast freezer, also known as a tunnel quick freezer, is an efficient continuous freezing solution for high-volume food processing plants. Designed for continuous, high-volume production, it rapidly freezes food while preserving texture, flavor, color, moisture and nutritional value. Products enter one end of the insulated tunnel on a conveyor belt and travel through an extremely cold environment where high-velocity refrigerated air rapidly removes heat so that exiting products reach a core temperature of -18°C or below and are ready for packaging or cold storage.

Technical Parameters of Continuous Tunnel Freezing Equipment
Model | Capacity | Size | Heat Preservation Thickness
TF200 | 200kg/h | 9500*2300*2200mm | 120mm
TF300 | 300kg/h | 11500*2400*2200mm | 120mm
TF500 | 500kg/h | 15800*2600*2300mm | 120mm
TF750 | 750kg/h | 17800*3100*2300mm | 120mm
TF1000 | 1000kg/h | 19000*3700*2400mm | 120mm
TF1500 | 1500kg/h | 22300*4100*2500mm | 120mm
TF2000 | 2000kg/h | 24300*4600*2500mm | 120mm

Types of Tunnel Blast Freezers
Type | Key Features | Typical Applications
Flat Mesh Belt Tunnel Blast Freezer | General-purpose model with a simple, reliable structure. Continuous operation with production capacities from 100–2,000 kg/h. Easy to maintain and suitable for a wide range of products. | Meat, poultry, seafood, meatballs, frozen snacks, prepared meals, bakery products.
Multi-Layer Mesh Belt Tunnel Freezer | Multiple conveyor layers increase the freezing path within a compact footprint, allowing longer freezing times and higher capacity without requiring additional factory space. | Thick meat products, seafood, bakery items, prepared foods, factories with limited installation space.
Vibrating (Fluidized Bed) Tunnel Freezer | Designed for IQF (Individual Quick Freezing). Vibration or high-speed airflow keeps products separated during freezing, preventing clumping and ensuring uniform freezing. | Shrimp, green peas, corn kernels, diced vegetables, berries, small fruits, and other granular products.
Steel Belt Tunnel Freezer | Uses a stainless steel conveyor belt with excellent heat transfer efficiency. Provides stable product transportation, easy cleaning, and long service life. | Fish fillets, shrimp, seafood, flat products, and processed aquatic foods.
Liquid Nitrogen Tunnel Freezer | Uses liquid nitrogen (-196°C) for ultra-fast freezing. Compact design with exceptional freezing speed and optional nitrogen recovery system to reduce operating costs. | Premium seafood, high-value fruits, gourmet foods, ready meals, delicate bakery products, and other high-value food items.

Benefits

• Continuous, automated production
• Faster freezing than conventional cold rooms
• Higher production efficiency
• Lower labor requirements
• Improved product quality after thawing
• Reduced moisture and weight loss
• Easy integration with automated production lines

Manufacturer and offering highlights
Foodline Machinery supplies complete industrial tunnel blast freezer solutions tailored to production needs. Offerings include factory-direct pricing, customized engineering design, capacities covering 100–5,000+ kg/h, CE-compliant manufacturing, installation guidance and commissioning, a one-year warranty, lifetime technical support, and global shipping and after-sales service.

Technical specifications

• Continuous tunnel blast / quick freezer for high-volume food processing
• Typical exit core temperature: -18°C or below
• Available model series: TF200, TF300, TF500, TF750, TF1000, TF1500, TF2000 (collectively: TF series)
• Model capacities range from 200 kg/h up to 2000 kg/h on this page; manufacturer lists capacities from 100–5,000+ kg/h across solutions
• Enclosure heat preservation thickness: 120 mm (as specified for TF models)
• Example external sizes per model available (dimensions in mm listed under Technical Parameters)
• Supported conveyor types: flat mesh belt, multi-layer mesh belt, vibrating (fluidized bed) IQF, steel belt, and liquid nitrogen systems
• Designed for a wide range of products: meat, poultry, seafood, vegetables, fruits, bakery products, snacks and prepared foods
• CE-compliant manufacturing and available installation guidance and commissioning
• One-year warranty and lifetime technical support offered by manufacturer
