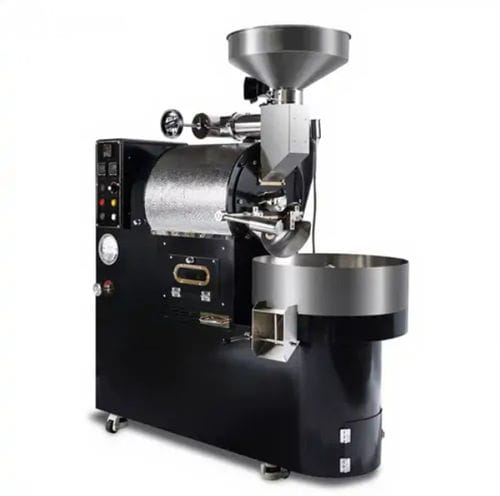

Coffee roaster FL-CR15

drumbatchcontinuous

Overview
The FL-CR15 is a 15 kg batch drum coffee roaster designed for small-scale commercial roasting: specialty coffee shops, micro-roasteries and coffee estates. It delivers repeatable profiles and is available with hybrid heating (direct flame plus hot air) or electric hot-air systems.

How it works
Green beans tumble evenly in a rotating stainless-steel drum while a burner provides direct heat and a hot-air stream supplements roasting. The system supports gas or electric heating and allows profile control throughout the roast. Typical roast time is 15–20 minutes per batch.

Features

• Omron temperature controller or PLC for precise profile management
• USB and Bluetooth output for roasting data; compatible with Artisan software
• Drum speed adjustable from 30 to 70 RPM to adapt to bean type and roast level
• Drum and housing in 304 stainless steel for corrosion resistance and easy cleaning
• Separate motors for roasting drum and cooling tray to support continuous cycles
• External cyclone separator for efficient chaff collection and reduced maintenance
• Gas heating supports LPG, natural gas and propane; electric hot-air option available

Technical specifications

• Model: FL-CR15
• Rated Capacity: 15 kg/batch
• Heating Method: Gas / Electric (Optional)
• Power: 1.15 kW (Main motor)
• Voltage: 220V / 380V
• Roasting Time: Approx. 15 minutes/batch
• Temperature Range: 0–300°C
• Drum Speed: 30–70 RPM (Adjustable)
• Dimensions (L×W×H): 1800 × 1100 × 2000 mm
• Machine Weight: 545 kg
• Control System: Artisan software compatible; USB output for temperature profiles; PLC touch control (Optional)
• Drum Material: 304 Stainless Steel
