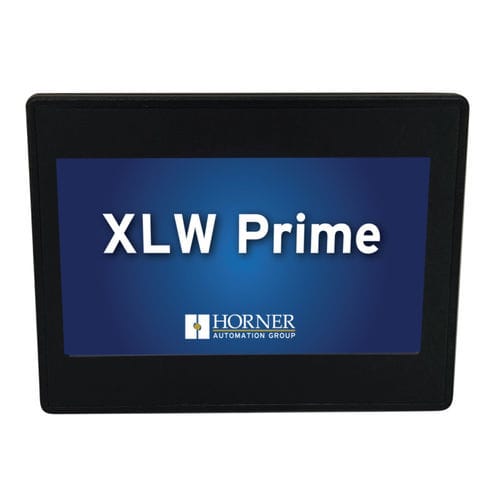

HMI with touch screen XLW Prime

DIN rail800 x 480TFT LCD

Colour TFT Touchscreen with I/O, Serial Ports, CANBus and full Ethernet – All in One Product. Logic engine features 1MB of application memory with a 0.02mS/K logic scan. Online Programming Mode (making logic changes on the fly without going thru stop mode) is supported. Operator Interface features include: Two (2) RS-232 and one (1) RS-485 port support RTU/Modbus Master/Slave, ASCII In/Out, and PLC/Drive downloadable protocols Networking features include: Integrated CsCAN port All units feature a microSD slot, supporting at least 32GB. The XLW Prime All-in-One controller with a built-in VGA TFT colour touchscreen, built-in I/O, networking options, removable Micro SD Card and USB ports. It’s programmable by Horner APG’s industry recognised Cscape software and can control a wide range of different processes and machines from small to medium applications. The XLW Prime comes fully equipped with 100Mbps Ethernet built into every model. No additional Ethernet add-ons or accessories are needed. The XLW Prime Ethernet support includes an integrated Web Server, FTP Host, Email, Modbus/TCP Master/Slave, Programming and more. The XLW Prime includes both a USB Host port and a USB On-the-go Port – each at USB 2.0 speeds (480Mbps). The Host Port allows connection of removable FLASH drives, supporting drives up to 2TB. The On-the-go Port provides the fastest communications interface for Programme Change on Line (Online Change). The eXLW I/O expansion is not limited to its Built-in I/O.
