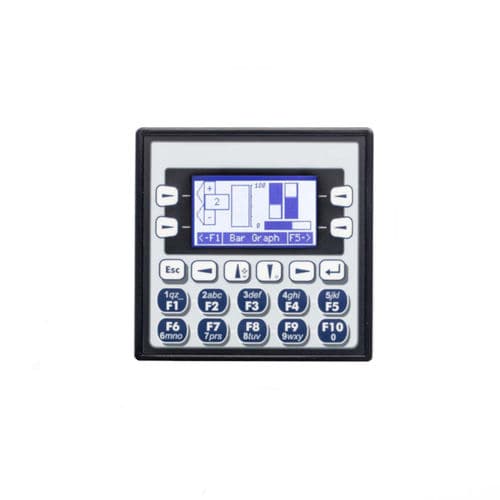

HMI with keyboard XLE

panel-mount128 x 64LCD

Logic Scan Rates – 0.7mS/kB Logic Real Time Clock (± 90 secs/month) HSC Upgrade (500 kHz) Operating Temperature range -10 to +60 °C PWM: Models 2,3,4 & 5 – 10 Khz and Model 6 – 65 Khz High Capacity MicroSD Slot (support for up to 32GB) GPRS and 3G Modem Support 6 Models available, 5 with varying I/O 1 model without I/O XLE is an introductory XL-Series product, it’s compact physical design utilises a standard quarter DIN (92x92mm) cut-out. The XLE all-in-one controller has a 128×64 2.2” Transflective LCD display. It supports full monochrome graphics capabilities. XLE offers a choice of flexible I/O configurations with six unique models to choose from (five optional models with built-in I/O and one without I/O), all of which include high speed counting capabilities (except for the Model 0, no I/O version). If the built-in I/O of the XLE isn’t enough for your specific application, it can be extended with any of our SmartStix, SmartRail SmartMod and SmartMod+ remote I/O modules. Two serial ports support simultaneous protocols giving the ability to connect to variety of serial devices. The XLE utilises a sunlight readable backlit screen and physical keys for buttons. XLE offers benefits such as, datalogging, Real Time Clock and multi-language support (custom fonts for different languages, symbols, etc.)
