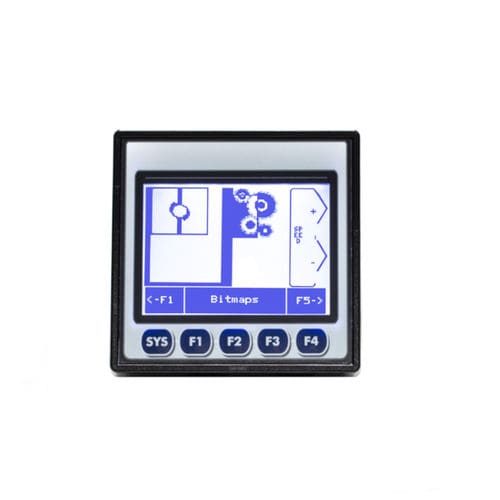

HMI with touch screen XLT

with keyboardDIN rail160 x 128

Improved Logic Scan Rates – 0.8ms/k Logic Real Time Clock (± 90 secs/month) HSC (500 kHz) Operating Temperature range -10 to +60 °C PWM: Models 2,3,4 & 5 – 10 Khz and Model 6 – 65 Khz High Capacity MicroSD Slot (support for up to 32GB) CAN Protocols – CsCan, CANopen, DeviceNet and J1939 CANopen is selectable in Cscape for Gen 3 XLT/XLTe, no license required. 6 Models available, 5 with varying I/O 1 model without I/O XLT is an XL-Series product, it’s compact physical design utilises a standard quarter DIN (92x92mm) cut-out. The XLT all-in-one touchscreen controller has a 160 x 128 3.5” Transflective LCD display. It supports full monochrome graphics capabilities. XLT offers a choice of flexible I/O configurations with six unique models to choose from (five optional models with built-in I/O and one without I/O), all of which include high speed counting capabilities(except for Model 0, no I/O version). If the built-in I/O of the XLT isn’t enough for your specific application, it can be extended with any of our SmartStix, SmartRail, SmartMod and SmartMod+ remote I/O modules. Two serial ports support simultaneous protocols giving the ability to connect to variety of serial devices. The XLT utilises a sunlight readable touchscreen. XLT offers benefits such as, datalogging, Real Time Clock and multi-language support (custom fonts for different languages, symbols, etc.)
