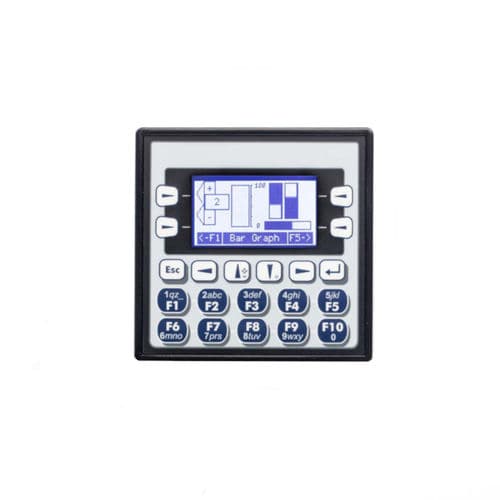

HMI with keyboard XLEe

panel-mount128 x 64LCD

2.2” Transflective LCD Monochrome display with fixed on-board I/O and full on-board Ethernet support. Logic Scan Rates – 0.7mS/kB Logic Full on-board 10/100 Mb Ethernet Real Time Clock (± 90 secs/month) HSC Upgrade (500 kHz) Operating Temperature range -10 to +60 °C PWM: Models 2,3,4 & 5 – 10 Khz and Model 6 – 65 Khz High Capacity MicroSD Slot (support for up to 32GB) CAN Protocols – CsCan, CANopen, DeviceNet and J1939 6 Models available, 5 with varying I/O 1 model without I/O XLEe is an XL-Series product, it’s compact physical design utilises a standard quarter DIN (92x92mm) cut-out. XLEe comes with extended hardware to include full on-board Ethernet 10/100 Mb support. XLEe offers a choice of flexible I/O configurations with six unique models to choose from (five optional models with built-in I/O and one without I/O), all of which include high speed counting capabilities (except for the Model 0, no I/O version). If the built-in I/O of the XLEe isn’t enough for your specific application, it can be extended with any of our SmartStix, SmartRail, SmartMod and SmartMod+ remote I/O modules. The XLEe utilises a sunlight readable backlit screen, physical keys for buttons, and supports full monochrome graphics capabilities. XLEe offers benefits such as, datalogging, Real Time Clock and multi-language support (custom fonts for different languages, symbols, etc). XLEe supports all of our current Ethernet based protocols. The added Ethernet is very advantageous, in that it allows for remote accessibility without the need for an add-on Ethernet card.
