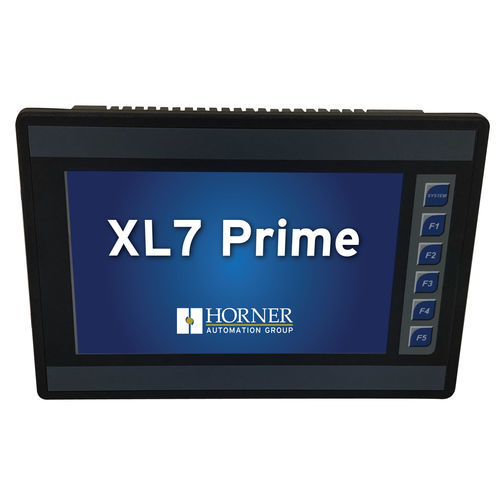

HMI with touch screen XL7 Prime

DIN rail800 x 480TFT LCD

2 Lan Ports – 10/100/1000 (Auto-MDIX) Ethernet LAN port Dual CAN ports for Fieldbus flexibility Logic Scan Rates – 0.013ms/k Logic Real Time Clock (± 90 secs/month) Operating Temperature range -10 to +60 °C High Capacity MicroSD Slot (support for up to 32GB) GPRS and 3G Modem Support 6 Models available, 5 with varying I/O 1 model without I/O The XL7 Prime All-in-One controller is designed around a high-resolution, wide aspect ratio colour touchscreen, built-in I/O, networking options, removable MicroSD Card and USB ports. It’s programmable by Horner APG’s industry recognised Cscape software and can control a wide range of different processes and machines from small to medium applications. The XL7 Prime comes fully equipped with dual 100Mbps Ethernet ports built into every model. No additional Ethernet add-ons or accessories are needed. The XL7 Prime Ethernet support includes an integrated Web Server, FTP Host, Email, Modbus/TCP Master/Slave, Programming and more. The XL7 Prime includes two CAN ports. XL7 Prime I/O expansion is not limited to its Built-in I/O.
