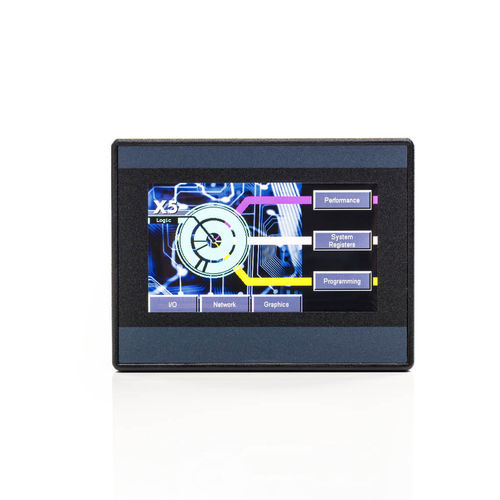

HMI with touch screen X5

panel-mount480 x 272TFT LCD

The X5 Micro OCS Series all-in-one programmable logic controller with a wide aspect colour screen and built-in fixed I/O. Virtual function keys slide in from the right on command High capacity microSD slot 4 DC inputs, 4 DC Outputs, 4 analogue inputs Wide-range DC power CAN port (via RJ45) Overview The X5 Micro OCS Series all-in-one programmable logic controller with a wide aspect colour screen and fixed built-in I/O. The 4.3″ wide aspect screen is user-friendly, intuitive and clear. Incorporating “pop out” soft keyboard technology, it is possible to use the entire screen to illustrate your specific applications and then “pop out” special function keys as required. When it comes to performance, resolution and technical capabilities, the X5 provides more than expected for its size. In an effort to make Horner OCS programmable logic controllers as seamless and user-friendly as possible, we have selected a streamlined set of fixed on-board I/O. 4 digital inputs, 4 digital outputs and 4 analogue inputs make automating your applications simple with a single product.
