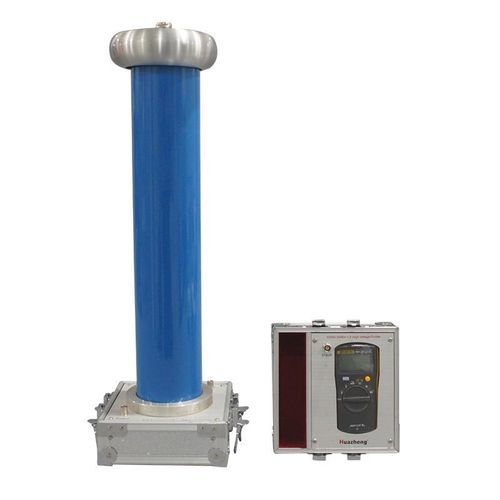

High-voltage divider

measurement

Product Overview

• This series of AC and DC high voltage divider is dedicated instrumentation for locale measurements, both high voltage DC measurements, and can measure AC high voltage.
• The equipment consists of a pressure device and measuring instrument composed of two parts.
• Divided voltage regulator with balanced equipotential shielding structure, in completely sealed insulating cylinder internal use of high-quality electronic components.
• The whole device offers accurate testing, good linearity, stable performance, reasonable structure, easy to carry, simple operation, and intuitive display characteristics.
• Ideal for field measurement instrument.

Product Features

• Precision: Accurately divides high voltage levels into manageable, lower voltages for safe measurement by standard instruments using high-quality resistive and capacitive components.
• Safety: Equipped with high-grade insulation materials, protective casings, and built-in overload protection to prevent accidental contact and safeguard against voltage spikes.
• Versatility: Suitable for high voltage testing, calibration of measurement instruments, power supply design, and educational demonstrations. Compact and portable design for easy integration.
• User-Friendly: Designed with user-friendly interfaces and clear labeling for straightforward setup and operation. Detailed instruction manuals and customer support available.

The Min Technical Indicators
Voltage grade | AC/DC50kV | AC/DC100kV | AC/DC150kV | AC/DC200kV | AC/DC300kV
Pressure ratio | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1
Impedance | 200MΩ | 400MΩ | 600MΩ | 800MΩ | 1200MΩ
Accuracy (DC value) | 1.0 stage | 1.0 stage | 1.0 stage | 1.0 stage | 1.0 stage
Accuracy (Exchange value) | 1.5 stage | 1.5 stage | 1.5 stage | 1.5 stage | 1.5 stage

Working Environment

• Temperature: 0~40°C
• Humidity: less than 85%RH

Volume and Weight
Voltage grade | AC/DC50kV | AC/DC100kV | AC/DC150kV | AC/DC200kV | AC/DC300kV
Volume (mm³) | 170×170×600 | 170×170×800 | 220×220×1100 | 220×220×1500 | 220×220×2100
Weight (kg) | About 10 | About 15 | About 20 | About 25 | About 36

Caractéristiques / Spécifications techniques

• Dedicated for AC and DC high voltage measurement
• Balanced equipotential shielding structure
• Completely sealed insulating cylinder
• High-quality electronic components
• Accurate testing and good linearity
• Stable performance and reasonable structure
• Easy to carry and simple operation
• Intuitive display
• High-grade insulation and overload protection
• Portable and compact design
• Temperature range: 0~40°C
• Humidity: less than 85%RH
• Pressure ratio: 1000:1
• Impedance: up to 1200MΩ depending on model
• Accuracy: 1.0 stage (DC), 1.5 stage (AC)
• Weight: 10-36 kg depending on model
