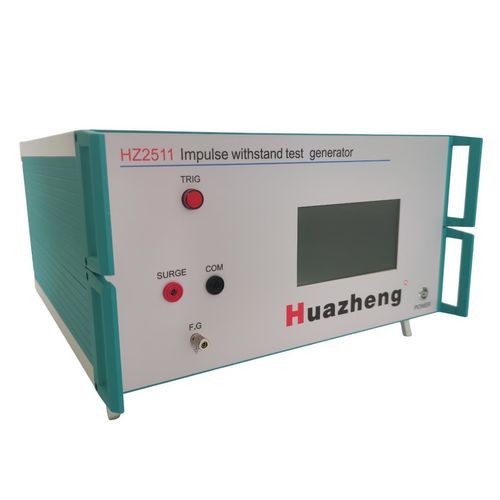

Voltage impulse tester HZ2511

current impulsefor electrical appliancesportable

The Impulse Withstand Generator HZ2511 by Huazheng is a specialized device designed to evaluate the insulation strength of electrical equipment under high-voltage conditions. It simulates transient overvoltages encountered during lightning strikes or switching operations, allowing engineers to assess the durability and reliability of insulation materials. Key Features: - Programmable control technology for intelligent automatic control and measurement. - High-quality imported components ensure stable and reliable output. - 7-inch LCD touch screen for flexible programming and status display. - Test voltage range: 500~12000V ±10%. - Voltage waveform: 1.2 ±30% / 50 ±20% μs. - Output impedance: 500Ω (±10%). - Time interval: 3~9999s. - Number of tests: 1~9999. - Compliance with IEC 60255-5. Safety Instructions: - Do not disassemble the instrument. - Use in dry environments only. - Ensure correct wiring before use. - Avoid contact with wet objects during operation. - Replace fuses with the same type and specification. Maintenance: - Regular dusting and powering on are recommended. - Avoid sharp objects on the LCD screen. - Regular calibration is advised. Packing List: 1. HZ2511 2. Fuse 3A (2 pcs) 3. Power cord 1.8m 4. Red test line (6m) 5. Black test line (6m) 6. Ground wire (4m)
