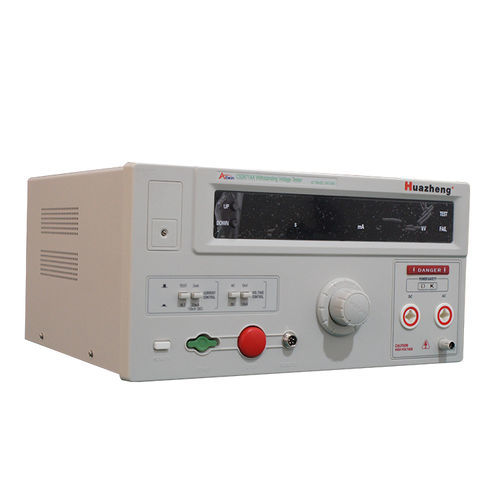

High-voltage hipot tester CS2671AX

DCAC

Product Details
The withstand voltage tester is an instrument applied to measure the density of withstanding voltage. It can visually, accurately, quickly and reliably test the breakdown voltage, leakage current and other electrical security performance indices of various measured objects, and can act as DC (AC) high voltage power supply to test the performance of components and the complete instrument.

Product Features

• The CS267X series withstand voltage tester is designed according to the requirement of international and domestic security standards such as IEC, BS, UL, JIS, etc.
• Withstanding voltage range: 3kV to 20kV
• Leakage current: 0 to 200 mA (special requirement determined in addition)
• Suitable for all kinds of white goods, power supply, cables, transformers, connecting terminals, high-voltage Bakelite electrical appliances, switches, outlets and plugs, motors, dishwashers, washing machines, centrifugal driers, microwave ovens, electromagnetic machines, electronic ovens, electric firepot, electric rice cookers, TV sets, electric fanners, medical services, chemical engineering, electronic instruments, meters, complete machines, etc.
• Applied to provide the security withstand voltage protection for a strong electricity system and to test the leakage current
• Indispensable withstand voltage experiment device for scientific research laboratories and technical supervision departments
• Full digital model withstand voltage tester series products latterly developed by the factory
• Both the testing voltage and the leakage current dwell time are displayed in digital
• Leakage current can be continuously and optionally set from 0.1 mA to 100 mA
• Digital count-down-display, precision of dwell time increased to above ±1%, testing range improved to 99 s
• Function is richer and more practical, actual leakage current values of the measured object can be reflected through the leakage current display
• Can be used to simultaneously display its function, and extended to measure the reverse voltage and reverse leakage current of the high voltage silicon rectifier stack, the reserve voltage and reserve leakage current of the high withstand voltage tube of a dynatron
• Domestic leading withstand voltage tester compared from technique performance to quality, reliability

Working Theory
Withstand Voltage tester is made up of high voltage rise circuit, leakage current detecting circuit and indicating meter. High voltage rise circuit can calibrate and output the required test voltage; Leakage current is capable of setting breakdown (protection) current; Indicating meter can directly read out the test voltage value and leakage current value (or set breakdown current value). DUT reaches the regulated time under the effect of test voltage, and instrument cuts off test voltage automatically or manually, once breakdown appears and leakage current goes beyond the set breakdown current, instrument can automatically cut off the output voltage and alert to confirm whether DUT can bear the insulation intensity test.

Standards

• IEC60065: Safety for audio, video and similar electronic apparatus
• IEC60204-1: Safety of machinery
• IEC60335-1: Safety of household and similar electrical appliances
• IEC60598-1: Safety of lighting equipment
• IEC60601-1: Safety of medical electrical equipment
• IEC60950: Safety of information technology equipment
• IEC61010-1: Safety for electrical equipment for measurement, control and laboratory use
• IEC61131-2: Safety for automatons

Technical Parameters
Model List
MODEL
CS2670A: ACW: 5kV, 20mA
CS2670A-1: ACW: 5kV, 20mA
CS2670AX: ACW: 5kV, 20mA
CS2670Y: ACW: 5kV, 20mA
CS2671AX: ACW: 10kV, 20mA; DCW: 10kV, 10mA
CS2671BX: ACW: 10kV, 50mA; DCW: 10kV, 20mA
CS2671TX: ACW: 10kV, 100mA
CS2672BX: ACW: 5kV, 100mA
CS2672CX: ACW: 5kV, 100mA; DCW: 5kV, 20mA
CS2672DX: ACW: 5kV, 20mA; DCW: 5kV, 10mA
CS2673X: ACW: 5kV, 200mA
CS2674AX: ACW: 20kV, 10mA; DCW: 20kV, 10mA

Key Technical Specifications (CS2671AX)

• ACW Output voltage: 0.00~10.00kV
• DCW Output voltage: 0.00~10.00kV
• Max. output power: 100VA (ACW), 50VA (DCW)
• Max. current: 20mA (ACW), 10mA (DCW)
• Current range: 2mA, 20mA (ACW); 2mA, 10mA (DCW)
• Output waveform: Sine wave
• Waveform distortion: ≤5%
• Test time: 0.0s~999s (0=continue)
• Volt meter range: 0.00kV~10.00kV
• Volt meter accuracy: ±(5%+5 words)
• Volt meter resolution: 10V
• Displayed value: RMS
• Ammeter range: 0.100mA~20.00mA (AC), 0.100mA~10.00mA (DC)
• Ammeter resolution: 2mA: 1uA; 20mA: 10uA
• Ammeter accuracy: ±(5%+5 words)
• Timer range: 0.0s~999s
• Timer min. resolution: 0.1s
• Timer accuracy: ±(1%+50ms)
• PLC interface: Yes
• Remote interface: Yes

Characteristics / Technical Specifications

• Model: CS2671AX
• ACW Output voltage: 0.00~10.00kV
• DCW Output voltage: 0.00~10.00kV
• Max. output power: 100VA (ACW), 50VA (DCW)
• Max. current: 20mA (ACW), 10mA (DCW)
• Current range: 2mA, 20mA (ACW); 2mA, 10mA (DCW)
• Output waveform: Sine wave
• Waveform distortion: ≤5%
• Test time: 0.0s~999s (0=continue)
• Volt meter range: 0.00kV~10.00kV
• Volt meter accuracy: ±(5%+5 words)
• Volt meter resolution: 10V
• Displayed value: RMS
• Ammeter range: 0.100mA~20.00mA (AC), 0.100mA~10.00mA (DC)
• Ammeter resolution: 2mA: 1uA; 20mA: 10uA
• Ammeter accuracy: ±(5%+5 words)
• Timer range: 0.0s~999s
• Timer min. resolution: 0.1s
• Timer accuracy: ±(1%+50ms)
• PLC interface: Yes
• Remote interface: Yes
