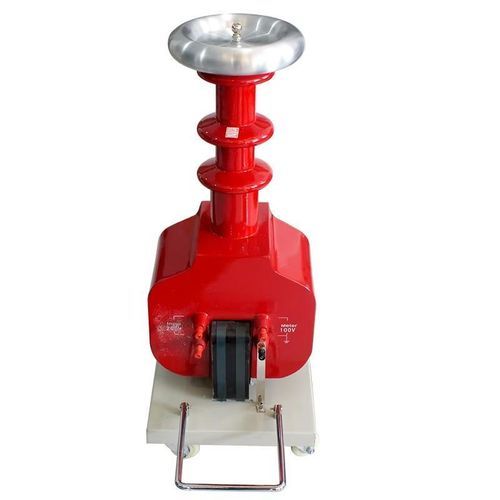

Measurement transformer HZG Dry Type

powerdrytest

This series transformer uses advanced production equipment, and new technology of coil winding epoxy vacuum pouring and CD-type iron core, which obviously reduce weight and volume, improve insulating strength and humidity resistance level, effectively weaken leakage magnet resulting in greatly enhance the ability to withstanding impact of testing short circuit current of transformer. This series products have features of light weight, small volume, beautiful appearance, stable performance, convenient usage and carrying, especially suitable for site operation, are new generation high voltage testing transformer used for AC and DC in China. This series products are applicable to power system and all power users to detect on site the insulating performance test of all electrical equipment, high voltage power sources of all appliance's voltage system or equipment with DC high voltage small current. Overview The Dry Type AC Hipot Tester is equipped with state-of-the-art features that make it a versatile and efficient tool for electrical testing. Its high voltage output capability allows for thorough testing of insulation integrity, helping to identify potential weaknesses or faults in electrical equipment. The tester is designed to deliver precise and accurate results, providing users with the confidence that their products meet the required safety standards. One of the key advantages of our Dry Type AC Hipot Tester is its dry type design, which eliminates the need for oil or other insulating fluids. This not only makes the tester more environmentally friendly, but also reduces maintenance requirements and operational costs. The compact and portable design of the tester further enhances its usability, allowing for easy transportation and use in various testing environments. In addition, the Dry Type AC Hipot Tester is equipped with comprehensive safety features to protect both the operator and the equipment being tested. Its intuitive interface and user-friendly controls make it easy to operate, while the built-in safety mechanisms ensure reliable and secure testing procedures. Whether you are a manufacturer, quality control professional, or electrical engineer, our Dry Type AC Hipot Tester is an essential tool for ensuring the safety and reliability of electrical products. With its advanced technology, user-friendly design, and comprehensive safety features, this tester is the perfect choice for all your insulation testing needs. Invest in the future of electrical testing with our Dry Type AC Hipot Tester and experience the peace of mind that comes with knowing your products are safe and reliable. Technical Target - Impedance voltage: 4.5% - 8% - Output voltage waveform: sine wave - Surface temperature rise: < 55°C - No-load current: < 4% - Allowable continuous operation time: 1 hour Major Technical Parameters Capacity (KVA) | Input voltage (V) | Output voltage (KV) | Output current (mA) | Output DC high voltage (KV) | Max. External dimension (mm) 1.5 | 200 | 50 | 30 | 70 | 230x180x370 3 | 200 | 50 | 60 | 70 | 310x250x570 6 | 200 | 50 | 120 | 70 | 300x310x680 10 | 200 | 50 | 200 | 70 | 320x350x720 20 | 400 | 50 | 400 | 70 | 360x350x720 30 | 400 | 50 | 600 | 70 | 500x380x780 5 | 200 | 100 | 50 | 140 | 360x350x960 10 | 200 | 100 | 100 | 140 | 360x350x960 20 | 400 | 100 | 200 | 140 | 500x380x880 30 | 400 | 100 | 300 | 140 | 580x380x880 50 | 400 | 100 | 500 | 140 | 650x460x1010 Remarks: Products can be manufactured according to the parameters provided by customers. - Advanced coil winding epoxy vacuum pouring and CD-type iron core technology - Light weight, small volume, beautiful appearance - Stable performance, convenient usage and carrying - Suitable for site operation - High voltage output for insulation integrity testing - Dry type design (no oil/fluids needed) - Comprehensive safety features - User-friendly interface and controls - Portable and compact - Applicable for AC and DC high voltage testing
