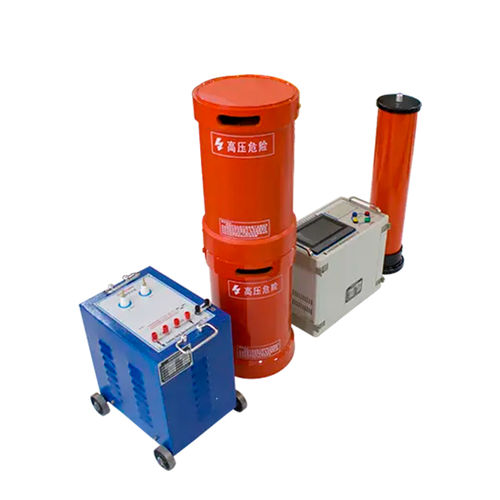

Resonant test system HZXB

for electrical networkscompactautomatic

Huazheng Electric is proud to present our innovative series resonance products, designed to meet the growing demand for reliable and efficient power solutions. Our series resonance products are engineered to deliver exceptional performance, ensuring optimal power quality and stability for a wide range of applications. At Huazheng Electric, we understand the critical importance of power quality in today’s industrial and commercial environments. Our series resonance products are meticulously crafted to address the challenges of power factor correction, harmonic mitigation, and voltage regulation, providing a comprehensive solution for enhancing the efficiency and reliability of electrical systems. Product apply range and features 1. 150kV power cable test Capacitance to be tested: frequency at 30-300HZ, capacitance to bestested 0.35uF. The test voltage is no more than 150kV, and the running time is 60min. 2. 150kV HV switch GIS test Capacitance to be tested: frequency at 30-300HZ, capacitance to be tested: 0.0885uF. The test voltage is no more than 300kV, and the running time is 1min. 3. 28KV/800MVA generator test Capacitance to be tested: frequency at 30-300HZ, capacitance to bestested 0.35uF. The test voltage is no more than 59kV, and the running time is 1min. Working environment 1. Ambient temperature: -15 0C -50 0C; 2. Relative humidity: ≤ 95% RH; 3. Altitude: ≤1000 m; Operation condition 1. Rated capacity: 1500kVA; 2. Input power: three-phase 380V voltage, 50Hz frequency; 3. Rated voltage: 150kV; 300 kv 4. Rated current: 10A; 5 A 5. Working frequency: 30-300hz; 6. Device output waveform: sine wave
