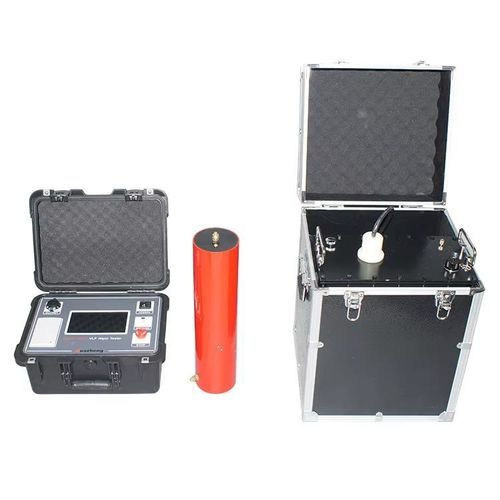

High-voltage tester HZDP-90kV

VLFcablecompact

Our VLF hipot tester products are engineered to deliver precise and stable performance, making them ideal for use in critical applications where accuracy and consistency are paramount. Whether you are in the field of scientific research, industrial testing, or environmental monitoring, our products are designed to meet your most demanding requirements. - Output rated voltage: See table 3 - Output frequency: 0.1Hz, 0.05Hz, 0.02Hz, 0.01Hz - Carrying capacity: - 0.05Hz max 1.1µF - 0.02Hz max 2.2µF - 0.01Hz max 5.5µF - Measurement accuracy: 3% - Voltage positive, negative peak error: ≤3% - Voltage waveform distortion degree: ≤5% - Conditions of use: indoor, outdoor; temperature: -10℃~+40℃; humidity: ≤85%RH - Power supply fuse: See table 3 - Power Supply: Voltage 220V±5%, 60Hz - Note: If the portable generator is used for power supply, the generator output voltage and frequency are required to be stable (generally, the power is greater than 3kW, the frequency is 60Hz, and the voltage is 220V±5%) I. Overview High voltage withstand test of electrical equipment is one of the most important items specified in insulation preventive test. The withstand voltage test can be divided into AC withstand voltage test and DC withstand voltage test. The AC withstand voltage test can be divided into power frequency, frequency conversion and 0.1Hz ultra-low frequency test technology, of which 0.1Hz ultra-low frequency technology is the latest technology recommended by the current international electrotechnical commission. Our company's new generation of ultra-low frequency and high voltage generator is the core product independently developed with the latest American technology. It adopts 7-inch touch screen, the latest ARM7 single chip microcomputer, high-speed AD acquisition circuit, and is equipped with background management software. It overcomes many shortcomings of domestic similar products (see table 1), and its cost performance is much higher than that of similar imported products. It is especially suitable for withstand voltage test of electrical equipment with large insulation equivalent capacitance (such as power cable, power capacitor, large and medium-sized generator and motor, etc.), which conforms to the national standard of electric power industry, general technical conditions for ultra-low frequency and high voltage generator (d) newly issued in 2004 l / t849.4-2004. II. Product Features - Advanced technology: digital frequency conversion technology, microcomputer control, pressure rise, pressure reduction, measurement, protection, etc. - The test process is fully automated. - Easy to operate: simple wiring, fool operation. - Comprehensive protection: multiple protection (over-voltage protection, over-current protection at high and low voltage sides), rapid action (when acting, Room ≤ 10ms), the instrument is safe and reliable. - Safety and reliability: the controller is connected with the low voltage of the high voltage generator, with photoelectric control, safe and reliable use. - The high and low voltage closed-loop negative feedback control circuit is adopted, and the output has no capacity rise effect. - Complete configuration: capacitive touch screen, LCD Chinese character display, automatic storage, automatic printing. - Large test range: 0.1Hz, 0.05Hz and 0.02Hz multi frequency selection, large test range. - Small volume and light weight: it is very convenient for outdoor operation. - Upper computer background management software (selective assembly) III. Technical Parameters Of Series Products - Output rated voltage: up to 90kV (peak value) - Output frequency: 0.1Hz, 0.05Hz, 0.02Hz, 0.01Hz - Carrying capacity: up to 5.5µF at 0.01Hz - Measurement accuracy: 3% - Voltage peak error: ≤3% - Voltage waveform distortion: ≤5% - Operating temperature: -10℃ to +40℃ - Humidity: ≤85%RH - Power supply: 220V±5%, 60Hz - Controller weight: 4kg; Voltage booster weight: up to 55kg (depending on model)
