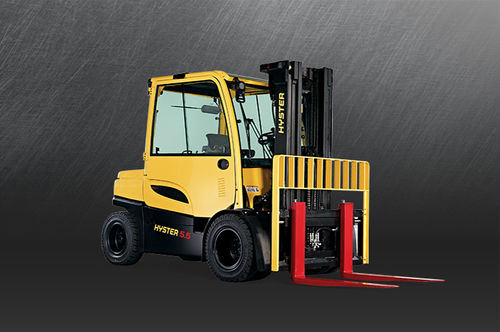

Electric forklift J4.0-5.5XNride-onindooroutdoor
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, indoor, outdoor
- Other characteristics
- 4-wheel, counterbalanced, heavy-duty
- Carrying capacity
4,000 kg, 4,500 kg, 5,000 kg, 5,500 kg
(8,818.5 lb, 9,920.8 lb, 11,023.1 lb, 12,125.4 lb)- Lifting height
5,290 mm, 5,735 mm, 6,000 mm
(208.27 in, 225.79 in, 236.22 in)- Overall width
1,373 mm, 1,451 mm
(54.1 in, 57.1 in)- Overall length
3,908 mm, 4,108 mm, 4,326 mm, 4,336 mm
(153.9 in, 161.7 in, 170.3 in, 170.7 in)- Load center distance
500 mm, 600 mm
(19.7 in, 23.6 in)- Weight without load
Min.: 7,435 kg
(16,391.4 lb)Max.: 8,867 kg
(19,548.4 lb)- Axle loading with maximum load front
Min.: 10,006 kg
(22,059.5 lb)Max.: 13,025 kg
(28,715.2 lb)- Axle loading with maximum load rear
Min.: 1,219 kg
(2,687.4 lb)Max.: 1,429 kg
(3,150.4 lb)- Axle loading without load front
Min.: 3,980 kg
(8,774.4 lb)Max.: 4,520 kg
(9,964.9 lb)- Axle loading without load rear
Min.: 3,455 kg
(7,617 lb)Max.: 4,347 kg
(9,583.5 lb)- Track width front
1,123 mm, 1,167 mm
(44.2 in, 45.9 in)- Track width rear
1,143 mm
(45 in)- Height of mast when lowered
2,320 mm
(91.3 in)- Free lift
100 mm
(3.9 in)- Overall height with mast raised
3,855 mm, 4,030 mm, 4,109 mm
(151.8 in, 158.7 in, 161.8 in)- Height to top of overhead guard
2,338 mm
(92 in)- Seat height
1,318 mm
(51.9 in)- Tow couplig height
526 mm
(20.7 in)- Length to fork face
2,908 mm, 3,126 mm, 3,136 mm
(114.5 in, 123.1 in, 123.5 in)- Fork carriage width
1,219 mm
(48 in)- Ground clearance under mast with load
130 mm, 135 mm
(5.1 in, 5.3 in)- Ground clearance at center of wheelbase with load
177 mm
(7 in)- Turning circle radius
2,411 mm, 2,573 mm
(94.9 in, 101.3 in)- Travel speed
19.5 km/h, 20 km/h, 21 km/h
(12.1 mph, 12.4 mph, 13 mph)- Lifting speed
Min.: 0.3 m/s
(0.984 ft/s)Max.: 0.6 m/s
(1.969 ft/s)- Lowering speed
Min.: 0.36 m/s
(1.181 ft/s)Max.: 0.53 m/s
(1.739 ft/s)- Rated drawbar pull
Min.: 6,422 N
Max.: 17,904 N
- Gradeability
Min.: 6.4 %
Max.: 23 %
- Rated output
36 kW
(48.9 hp)- Maximum operating pressure
155 bar
(2,248.1 psi)- Oil flow
60 l/min
(15.9 us gal/min)- Noise level
68 dB
Description
Tough, powerful, high capacity electric fork lift trucks with a low cost of operation
•Strong construction and proven components
•Industry-leading speeds
•AC traction motors
•Vehicle System Manager (VSM)
•Long service life
AN ELECTRIC TRUCK WITH ICE-LIKE PERFORMANCE.
These powerful four-wheel electric counterbalanced trucks deliver excellent manoeuvrability and a low cost of operation through customisable performance settings. This results in a perfect balance between energy efficiency and performance.
Designed to operate both indoors and outdoors, this tough electric truck delivers ICE-like performance combined with low energy consumption for metal, timber, beverage, bottling, paper, pulp and automotive industries.
STRONG CONSTRUCTION AND PROVEN COMPONENTS
The truck’s robust and highly rigid construction includes a heavy-duty mast and axle for excellent load handling and designed to handle loads found in tough indoor or outdoor applications.
Proven components enable long term reliability and durability with VSM (Vehicle system manager), O-ring face seal fittings, AC motors, sealed electrical connectors, Hall effect sensors, Solid state encoders.
