4-wheel forklift J1.6-2.0XNelectricride-onindoor
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling, indoor, outdoor
- Other characteristics
- 4-wheel, counterbalanced, high-performance, pneumatic tire, for medium loads
- Carrying capacity
1,600 kg, 1,800 kg, 2,000 kg
(3,527.4 lb, 3,968.3 lb, 4,409.2 lb)- Lifting height
5,500 mm
(216.54 in)- Overall width
1,050 mm
(41.3 in)- Overall length
2,980 mm, 3,088 mm
(117.3 in, 121.6 in)- Load center distance
500 mm
(19.7 in)- Weight without load
3,036 kg, 3,209 kg
(6,693.2 lb, 7,074.6 lb)- Axle loading with maximum load front
3,986 kg, 3,992 kg
(8,787.6 lb, 8,800.9 lb)- Axle loading with maximum load rear
650 kg, 817 kg
(1,433 lb, 1,801.2 lb)- Axle loading without load front
1,461 kg, 1,533 kg
(3,221 lb, 3,379.7 lb)- Axle loading without load rear
1,575 kg, 1,676 kg
(3,472.3 lb, 3,694.9 lb)- Track width front
889 mm
(35 in)- Track width rear
918 mm
(36.1 in)- Height of mast when lowered
2,230 mm
(87.8 in)- Free lift
100 mm
(3.9 in)- Overall height with mast raised
3,868 mm
(152.3 in)- Height to top of overhead guard
2,070 mm
(81.5 in)- Seat height
1,017 mm
(40 in)- Tow couplig height
360 mm
(14.2 in)- Length to fork face
1,980 mm, 2,088 mm
(78 in, 82.2 in)- Fork carriage width
907 mm
(35.7 in)- Ground clearance under mast with load
70 mm
(2.8 in)- Ground clearance at center of wheelbase with load
100 mm
(3.9 in)- Turning circle radius
1,654 mm, 1,762 mm
(65.1 in, 69.4 in)- Travel speed
16 km/h
(9.9 mph)- Lifting speed
0.43 m/s, 0.59 m/s
(1.411 ft/s, 1.936 ft/s)- Lowering speed
0.47 m/s, 0.5 m/s
(1.542 ft/s, 1.64 ft/s)- Rated drawbar pull
Max.: 11,690 N
Min.: 3,406 N
- Gradeability
Max.: 35 %
Min.: 11 %
- Rated output
12 kW
(16.3 hp)- Maximum operating pressure
180 bar
(2,610.7 psi)- Oil flow
40 l/min
(10.6 us gal/min)- Noise level
69 dB
Description
Tough and energy-efficient electric forklift trucks with class-leading manoeuvrability.
•Robust design
•Operator-friendly
•Efficient handling
•Minimal service checks
•On-board diagnostics
TOUGH AND ENERGY EFFICIENT.

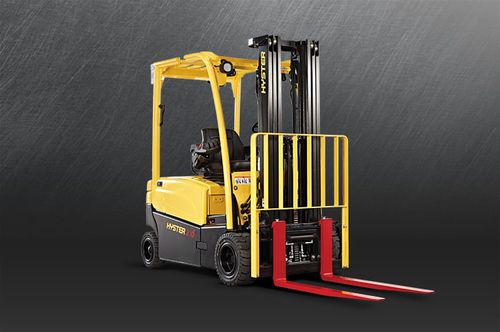

The Hyster® J1.6-2.0XN four-wheel counterbalanced electric forklift truck is suitable for both indoor and outdoor operations and can deliver a low cost of ownership to even the most demanding operation.
With a Zero Turning Radius axle, this tough and energy-efficient four-wheel electric forklift truck delivers class-leading manoeuvrability, as well as the lowest level of energy consumption in its class.
ROBUST DESIGN
The truck’s robust mast design delivers high visibility, helping operators perform reliable, high-performance lifting around the clock.
A range of masts (LFL and FFL) is available with several tilt options to suit the needs of every application. The mast design also allows good visibility of the load and forks thanks to a wide mast window and neatly routed hoses.
The robust chassis construction, combined with steel hoods and durable side covers to protect from impact damage and provides durability and stability that boosts operator confidence and increases productivity.
