Electric forklift J2.2-3.5A

ride-onindustrialfor warehouse

Overview

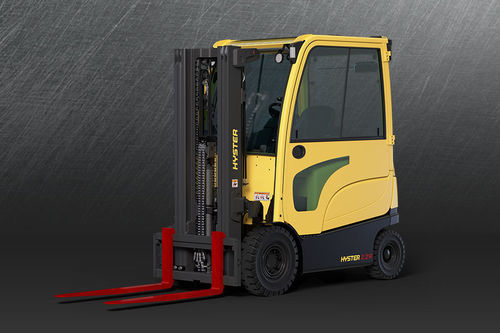

The Hyster J2.2‑3.5A electric 4‑wheel counterbalance forklift delivers configurable clean power and the operator features required for intensive indoor and outdoor handling. Available with multiple battery chemistries and optional motor packages, it is designed for energy efficiency, long runtimes and simplified maintenance.

Key features

• Flexible battery options: lead‑acid, lithium‑ion, TPPL
• Energy efficient drive and optional permanent‑magnet motor package
• Exceptional all‑round visibility via wide‑view mast
• Operator assist and ergonomics: touchscreen, seat options, dual joystick
• IP67 protection for dusty or wet environments

Flexible battery power
Choose the battery technology that matches your duty cycle and sustainability targets. Lead‑acid, lithium‑ion and TPPL options support varied charging strategies while the electric drivetrain produces no exhaust emissions.

Energy efficiency and serviceability
Optional permanent‑magnet drive motors and hydraulic pump improve runtime and energy use. The truck is engineered for straightforward access and maintenance to reduce downtime and total cost of ownership.

Visibility and manoeuvrability
The mast is optimised for a wide viewing window between the mast sides, improving sight of fork tips and loads. A Zero Turn Radius steer axle enhances manoeuvrability in standard aisles.

Operator assist & ergonomics
The operator compartment is ergonomically arranged with a smartphone‑style touchscreen as standard. Optional seats, dual joystick control and add‑on camera and lighting packages increase operator comfort, control and situational awareness. Optional Dynamic Stability System (DSS) can monitor conditions and limit functions to reduce tip‑over risk.

Protection for arduous conditions
All models in the A series are rated IP67 for enhanced protection against dust and water, enabling reliable operation in harsh or wet environments.

Industry sectors

• Paper & packaging
• Metals
• Automotive & transport manufacturing
• Building materials
• Agriculture
• Chemicals & plastics
• Rental fleets

Models & specifications (table)
Model | Load Capacity | Load Centre | Lift Height | Platform Height | Turning Radius | AST (wide / long) | Battery Capacity | Overall Width | Weight | Engine | Transmission | Stacking Height 1st Row | Stacking Height 2nd Row | Stacking Height 3rd Row | Load Capacity 1st Row | Load Capacity 2nd Row | Load Capacity 3rd Row
J2.2A MWB | 2200kg | 500mm | 8000mm | NAmm | 1958mm | 3799mm | 81 / 560(V/Ah) | 1185mm | 4531kg | NA | NA | NA | NA | NA | NA | NA | NA
J2.5A MWB | 2500kg | 500mm | 8000mm | NAmm | 1958mm | 3799mm | 80 / 560(V/Ah) | 1185mm | 4642kg | NA | NA | NA | NA | NA | NA | NA | NA
J2.5A LWB | 2500kg | 500mm | 8000mm | NAmm | 2102mm | 3943mm | 80 / 700(V/Ah) | 1185mm | 5412kg | NA | NA | NA | NA | NA | NA | NA | NA
J3.0A LWB | 3000kg | 500mm | 8000mm | NAmm | 2102mm | 3953mm | 81 / 700(V/Ah) | 1223mm | 5509kg | NA | NA | NA | NA | NA | NA | NA | NA
J3.5A LWB | 3500kg | 500mm | 8000mm | NAmm | 2169mm | 4019mm | 80 / 700(V/Ah) | 1223mm | 5746kg | NA | NA | NA | NA | NA | NA | NA | NA

Technical specifications

• Model family: J2.2‑3.5A (Hyster A Series)
• Capacity range: 2200–3500 kg
• Standard load centre: 500 mm
• Maximum listed lift height: up to 8000 mm
• Turning radius examples: 1958–2169 mm depending on model
• Battery capacity examples: 80–81 V / 560–700 Ah depending on model
• Overall width examples: 1185 mm or 1223 mm depending on model
• Unladen weight examples: approx. 4531–5746 kg depending on model
• Available battery types: lead‑acid, lithium‑ion, TPPL
• Optional enhanced motor package: permanent‑magnet drive motors and permanent‑magnet hydraulic pump
• Operator features: ergonomic compartment, smartphone‑style touchscreen, seat options, dual joystick control (optional)
• Operator assistance: optional camera and light packages, Dynamic Stability System (DSS) optional
• Telematics: Hyster Tracker fleet monitoring available
• Environmental protection rating: IP67 across the electric A Series
