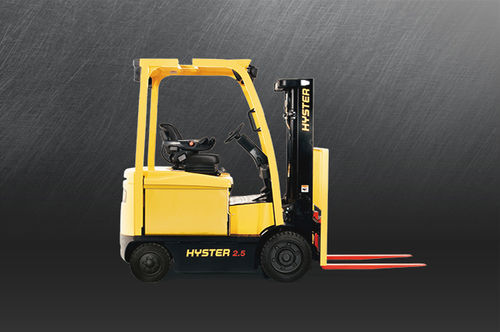

4-wheel forklift E2.2-3.5XNelectricride-onhandling
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Operator
- ride-on
- Applications
- handling
- Other characteristics
- 4-wheel, cushion tire, for medium loads
- Carrying capacity
2,200 kg, 2,500 kg, 3,000 kg, 3,200 kg, 3,500 kg
(4,850.2 lb, 5,511.6 lb, 6,613.9 lb, 7,054.8 lb, 7,716.2 lb)- Lifting height
5,968 mm, 6,000 mm
(234.96 in, 236.22 in)- Overall width
1,108 mm, 1,242 mm
(43.6 in, 48.9 in)- Overall length
3,016 mm, 3,040 mm
(118.7 in, 119.7 in)- Load center distance
500 mm
(19.7 in)- Weight without load
Max.: 5,390 kg
(11,882.9 lb)Min.: 4,530 kg
(9,986.9 lb)- Axle loading with maximum load front
5,574 kg, 5,601 kg
(12,288.6 lb, 12,348.1 lb)- Axle loading with maximum load rear
1,150 kg, 1,234 kg
(2,535.3 lb, 2,720.5 lb)- Axle loading without load front
1,809 kg, 2,009 kg
(3,988.2 lb, 4,429.1 lb)- Axle loading without load rear
2,632 kg, 2,715 kg
(5,802.6 lb, 5,985.6 lb)- Track width front
905 mm, 1,039 mm
(35.6 in, 40.9 in)- Track width rear
940 mm
(37 in)- Height of mast when lowered
2,235 mm
(88 in)- Free lift
100 mm
(3.9 in)- Overall height with mast raised
4,049 mm
(159.4 in)- Height to top of overhead guard
2,248 mm
(88.5 in)- Seat height
280 mm
(11 in)- Length to fork face
2,016 mm, 2,040 mm
(79.4 in, 80.3 in)- Fork carriage width
977 mm
(38.5 in)- Ground clearance under mast with load
85 mm
(3.3 in)- Ground clearance at center of wheelbase with load
92 mm
(3.6 in)- Turning circle radius
Max.: 2,094 mm
(82.4 in)Min.: 1,735 mm
(68.3 in)- Travel speed
19.7 km/h, 19.8 km/h
(12.2 mph, 12.3 mph)- Lifting speed
0.52 m/s, 0.72 m/s
(1.706 ft/s, 2.362 ft/s)- Lowering speed
0.51 m/s, 0.57 m/s
(1.673 ft/s, 1.87 ft/s)- Rated drawbar pull
Max.: 22,100 N
Min.: 13,460 N
- Gradeability
20 %, 32 %, 34 %, 39 %
- Rated output
23.6 kW, 24 kW
(32.1 hp, 32.6 hp)- Maximum operating pressure
155 bar
(2,248.1 psi)- Oil flow
Max.: 40 l/min
(10.6 us gal/min)Min.: 20 l/min
(5.3 us gal/min)- Noise level
67 dB
Description
The Hyster® E2.2-3.5XN series lowers your cost of operations by delivering enhanced productivity, lower energy consumption, advanced dependability and reduced maintenance costs.
•Decreased downtime
•Low cost of operation
•Built for comfort
•Enhanced productivity
AC-POWERED. OPERATOR-FRIENDLY.
Using cutting-edge components and intelligent system design, the E2.2-3.5XN series operates with minimal downtime, and is assembled on a state-of-the-art assembly line utilizing the latest in manufacturing processes and techniques.
DECREASED DOWNTIME
Durable components mean less downtime for service. The standard AC traction and hydraulic motors set the standard in materials handling, significantly reducing maintenance requirements. Hyster-designed thermal management system maximizes performance during continuous operation, while preventing damage to components due to heat.
