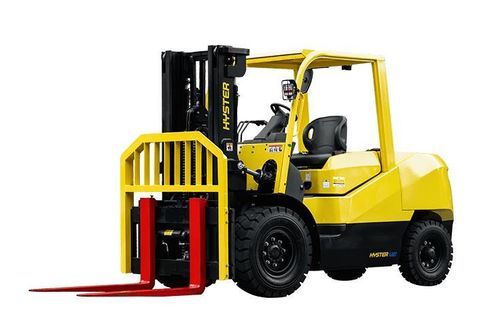

Electric forklift J4.0-5.0XTLG

ride-onoutdoorfor materials handling

Overview
The Hyster J4.0-5.0XTLG is a 4-wheel electric counterbalanced forklift engineered for indoor and outdoor heavy-duty material handling. It features a lithium side-charging battery and a high-efficiency drivetrain to deliver ICE-equivalent performance with reduced energy consumption.

Key features

• Load capacity range 4,000–5,000 kg across model variants
• Lithium battery with side-charging capability
• Water-cooled motors and controllers
• BMS and controller with leakage-detection system

Reliability and durability

• Proven structural design tested for indoor and outdoor conditions
• Intensive environmental testing to ensure reliability
• Automatic battery heating for temperature recovery during discharge and before charging

High efficiency and performance

• Permanent magnet synchronous motor and high-efficiency controller
• Up to 95% working efficiency and approximately 20% energy reduction versus conventional solutions
• IPX4 rating enabling continuous operation in wet conditions

Ergonomics and operator comfort

• Optimised operator compartment and multiple seat options
• Informative colour display with performance mode settings
• Wide-view mast, large tyres and high ground clearance for uneven ground

Models and specifications
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Battery Capacity
J4.0XTLG | 4000 kg | 500 mm | 3000 mm | 2850 mm | 153.6V / 302Ah
J4.5XTLG | 4500 kg | 500 mm | 3000 mm | 2850 mm | 153.6V / 302Ah
J5.0XTLG | 5000 kg | 500 mm | 3000 mm | 2905 mm | 153.6V / 302Ah
J5.0XTLGS6 | 5000 kg | 500 mm | 3000 mm | 2930 mm | 153.6V / 302Ah

Technical specifications

• Capacity range: 4000–5000 kg
• Load centre: 500 mm (some variants may differ)
• Standard lift height: 3000 mm
• Battery: 153.6 V / 302 Ah (lithium) with side charging
• Water-cooled motors and controllers to maintain optimal operating temperatures
• BMS and leakage-detection controller
• Automatic battery heating function for thermal management
• Working efficiency up to 95% and approx. 20% energy savings
