4-wheel forklift E1.6-2.0XN
electricride-onhandling

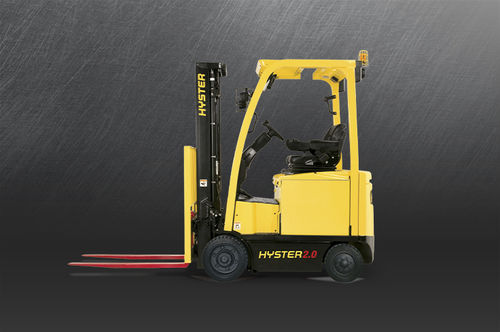

4-wheel forklift - E1.6-2.0XN - HYSTER - electric / ride-on / handling
4-wheel forklift - E1.6-2.0XN - HYSTER - electric / ride-on / handling
Add to favorites
Compare this product

Characteristics

Motor type
electric
Operator
ride-on
Applications
handling
Other characteristics
4-wheel, cushion tire, for medium loads, light-duty
Carrying capacity

1,600 kg, 1,800 kg, 2,000 kg
(3,527.4 lb, 3,968.3 lb, 4,409.2 lb)

Lifting height

5,500 mm
(216.54 in)

Overall width

108 mm, 945 mm, 986 mm, 1,091 mm
(4.3 in, 37.2 in, 38.8 in, 43 in)

Overall length

2,908 mm, 2,929 mm, 2,968 mm
(114.5 in, 115.3 in, 116.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

3,414 kg, 3,532 kg, 3,719 kg
(7,526.6 lb, 7,786.7 lb, 8,199 lb)

Axle loading with maximum load front

4,233 kg, 4,547 kg, 4,881 kg
(9,332.2 lb, 10,024.4 lb, 10,760.8 lb)

Axle loading with maximum load rear

782 kg, 786 kg, 838 kg
(1,724 lb, 1,732.8 lb, 1,847.5 lb)

Axle loading without load front

1,473 kg, 1,479 kg, 1,506 kg
(3,247.4 lb, 3,260.6 lb, 3,320.2 lb)

Axle loading without load rear

1,908 kg, 2,053 kg, 2,246 kg
(4,206.4 lb, 4,526.1 lb, 4,951.6 lb)

Track width front

788 mm, 808 mm, 906 mm, 939 mm
(31 in, 31.8 in, 35.7 in, 37 in)

Track width rear

817 mm, 822 mm
(32.2 in, 32.4 in)

Height of mast when lowered

2,180 mm
(85.8 in)

Free lift

100 mm
(3.9 in)

Overall height with mast raised

4,006 mm
(157.7 in)

Height to top of overhead guard

2,250 mm
(88.6 in)

Seat height

1,161 mm
(45.7 in)

Tow couplig height

232 mm
(9.1 in)

Length to fork face

1,908 mm, 1,929 mm, 1,968 mm
(75.1 in, 75.9 in, 77.5 in)

Fork carriage width

907 mm
(35.7 in)

Ground clearance under mast with load

87 mm
(3.4 in)

Ground clearance at center of wheelbase with load

92 mm
(3.6 in)

Turning circle radius

1,644 mm, 1,657 mm, 1,692 mm
(64.7 in, 65.2 in, 66.6 in)

Travel speed

18.4 km/h
(11.4 mph)

Lifting speed

0.47 m/s, 0.49 m/s, 0.53 m/s, 0.72 m/s
(1.542 ft/s, 1.608 ft/s, 1.739 ft/s, 2.362 ft/s)

Lowering speed

0.47 m/s, 0.51 m/s
(1.542 ft/s, 1.673 ft/s)

Rated drawbar pull

Min.: 2,745 N

Max.: 12,964 N

Gradeability

Min.: 5.4 %

Max.: 33.8 %

Rated output

15.9 kW, 18.4 kW
(21.6 hp, 25 hp)

Maximum operating pressure

180 bar
(2,610.7 psi)

Oil flow

Min.: 20 l/min
(5.3 us gal/min)

Max.: 40 l/min
(10.6 us gal/min)

Noise level

68 dB

Description

The highly durable and ultra reliable Hyster® E1.6-2.0XN series offers numerous advantages in quality and ergonomics, making it one of the most operator-friendly AC-powered lift trucks in the world. Setting the standard in electric lift trucks, it lowers overall operating costs and maximizes productivity. This is the workhorse you can count on day in and day out to get the job done. •Superior serviceability •Ergonomic design •Low energy consumption •Dependability •Performance modes AC-POWERED. OPERATOR-FRIENDLY The Hyster® E1.6-2.0XN series lowers your cost of operations by delivering increased productivity, lowered energy consumption, advanced dependability and reduced maintenance costs. Using cutting-edge components and intelligent system design, the E1.6-2.0XN series operates with minimal downtime, and is assembled on a state-of-the-art assembly line utilizing the latest in manufacturing processes and techniques. SUPERIOR SERVICEABILITY The E1.6-2.0XN series utilises CANbus communications to simplify wiring and improve serviceability. State-of-the-art on-board diagnostics reduce repair time and minimise expensive part-swapping. A two-piece floor plate and side plates can be easily removed for unrestricted service access. The lift-out floor plate requires no tools for quick and easy daily operator checks. Easy battery access is provided via the gas spring-assisted hood and quick release handle. The rear counterweight service cover is easily removed by loosening two screws.
