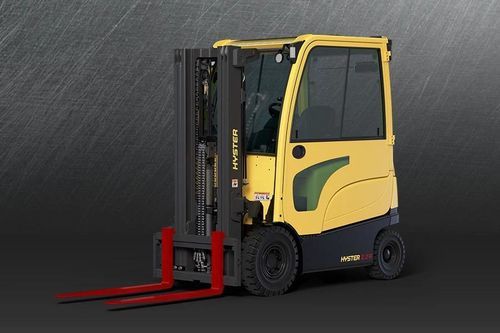

Electric forklift J2.2-3.5A

ride-onoutdoorfor materials handling

Overview

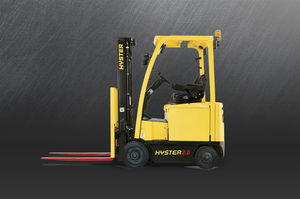

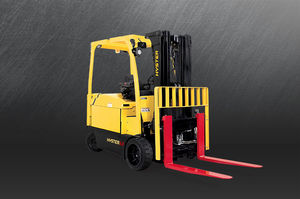

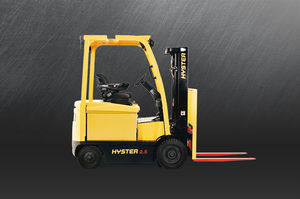

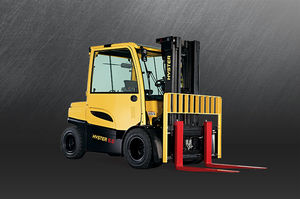

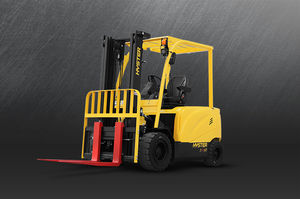

Hyster J2.2‑3.5A is an electric 4‑wheel counterbalance forklift designed for indoor and outdoor handling. Available with pneumatic‑tyre options and multiple battery chemistries, it covers capacities from 2,200 to 3,500 kg and lift heights up to 8,000 mm.

Key benefits

• Flexible battery power options
• Improved energy efficiency and serviceability
• All‑round mast visibility
• Operator assist and ergonomic controls
• IP67 protection for harsh conditions

Flexible Battery Power
Choose from lead‑acid, lithium‑ion or TPPL (Thin Plate Pure Lead) battery options to match duty cycles and site requirements. Battery electric drive produces no exhaust emissions, supporting clean operations and indoor use.

Energy Efficiency
Configure drive and motor packages to balance productivity and total cost of ownership. An optional enhanced motor package (permanent magnet drive motors and permanent magnet hydraulic pump) can extend runtime. Design features support simplified maintenance to reduce downtime.

Exceptional Visibility
The mast is engineered for all‑round visibility with a wide viewing window between mast sides to improve sightlines to fork tips and loads. Zero Turn Radius steer axle improves manoeuvrability in standard aisles.

Operator Assist & Ergonomics
The operator compartment includes a smartphone‑style touchscreen display as standard. Options include seat upgrades, dual joystick control, camera and light packages, and the optional Dynamic Stability System (DSS) to monitor operating conditions and help reduce tip‑over risk.

Protection for Arduous Conditions
All A Series models carry an IP67 rating for high protection against dust and water ingress, enabling reliable performance outdoors in adverse weather and in demanding industrial environments.

Table - Models and specifications
Model | Load capacity | Load centre | Max lift height | Turning radius | AST (length/width) | Battery (V/Ah) | Overall width | Weight
J2.2A MWB | 2200 kg | 500 mm | 8000 mm | 1958 mm | 3799 mm | 80 / 560 | 1185 mm | 4531 kg
J2.5A MWB | 2500 kg | 500 mm | 8000 mm | 1958 mm | 3799 mm | 80 / 560 | 1185 mm | 4642 kg
J2.5A LWB | 2500 kg | 500 mm | 8000 mm | 2102 mm | 3943 mm | 80 / 700 | 1185 mm | 5412 kg
J3.0A LWB | 3000 kg | 500 mm | 8000 mm | 2102 mm | 3953 mm | 81 / 700 | 1223 mm | 5509 kg
J3.5A LWB | 3500 kg | 500 mm | 8000 mm | 2169 mm | 4019 mm | 80 / 700 | 1223 mm | 5746 kg

Additional product information
Integrated wireless monitoring (Hyster Tracker) is available and standard on A Series for fleet insights. Optional operator assistance systems, pedestrian‑awareness camera packages and tailored lighting are offered to improve site safety.

Technical specifications

• Model range: J2.2‑3.5A (A Series electric counterbalance)
• Capacity range: 2,200–3,500 kg depending on variant
• Standard load centre: 500 mm
• Max lift height: up to 8,000 mm (model dependent)
• Battery options: lead‑acid, lithium‑ion, TPPL
• Optional enhanced motor package: permanent magnet drive motors and permanent magnet hydraulic pump
• Operator interface: smartphone‑style touchscreen; optional dual joystick and seat upgrades
• Stability: optional Dynamic Stability System (DSS)
• Protection: IP67 for dust and water resistance
• Steering: Zero Turn Radius steer axle for improved manoeuvrability
