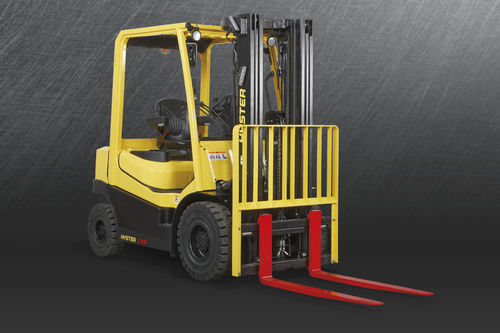

Pneumatic tire forklift H2.0-3.5ALPGride-onhandling
Add to favorites
Compare this product
Characteristics
- Motor type
- LPG
- Operator
- ride-on
- Applications
- handling
- Other characteristics
- 4-wheel, high-performance, pneumatic tire
- Carrying capacity
2,000 kg, 2,500 kg, 3,000 kg, 3,500 kg
(4,409.2 lb, 5,511.6 lb, 6,613.9 lb, 7,716.2 lb)- Lifting height
8,070 mm, 8,550 mm
(317.72 in, 336.61 in)- Overall width
Max.: 1,545 mm
(60.8 in)Min.: 1,160 mm
(45.7 in)- Overall length
Max.: 3,890 mm
(153.1 in)Min.: 3,534 mm
(139.1 in)- Load center distance
500 mm, 600 mm
(19.7 in, 23.6 in)- Weight without load
3,613 kg, 3,990 kg, 4,292 kg, 4,642 kg, 4,910 kg
(7,965.3 lb, 8,796.4 lb, 9,462.2 lb, 10,233.9 lb, 10,824.7 lb)- Axle loading with maximum load front
Max.: 7,230 kg
(15,939.4 lb)Min.: 4,815 kg
(10,615.3 lb)- Axle loading with maximum load rear
Max.: 1,180 kg
(2,601.5 lb)Min.: 632 kg
(1,393.3 lb)- Axle loading without load front
Max.: 1,880 kg
(4,144.7 lb)Min.: 1,615 kg
(3,560.5 lb)- Axle loading without load rear
Max.: 3,227 kg
(7,114.3 lb)Min.: 1,000 kg
(2,204.6 lb)- Track width front
959 mm, 976 mm, 983 mm, 1,004 mm
(37.8 in, 38.4 in, 38.7 in, 39.5 in)- Track width rear
958 mm, 980 mm, 982 mm
(37.7 in, 38.6 in, 38.7 in)- Height of mast when lowered
Max.: 2,692 mm
(106 in)Min.: 2,010 mm
(79.1 in)- Free lift
50 mm, 160 mm
(2 in, 6.3 in)- Overall height with mast raised
3,575 mm, 3,640 mm, 4,500 mm, 4,552 mm
(140.7 in, 143.3 in, 177.2 in, 179.2 in)- Height to top of overhead guard
2,150 mm, 2,160 mm, 2,175 mm, 2,182 mm
(84.6 in, 85 in, 85.6 in, 85.9 in)- Seat height
1,143 mm, 1,145 mm, 1,167 mm, 1,168 mm
(45 in, 45.1 in, 45.9 in, 46 in)- Tow couplig height
420 mm, 440 mm, 445 mm, 452 mm, 462 mm
(16.5 in, 17.3 in, 17.5 in, 17.8 in, 18.2 in)- Length to fork face
Max.: 2,820 mm
(111 in)Min.: 2,535 mm
(99.8 in)- Fork carriage width
1,040 mm, 1,070 mm, 1,100 mm
(40.9 in, 42.1 in, 43.3 in)- Ground clearance under mast with load
115 mm, 130 mm, 152 mm
(4.5 in, 5.1 in, 6 in)- Ground clearance at center of wheelbase with load
160 mm, 178 mm, 182 mm, 203 mm
(6.3 in, 7 in, 7.2 in, 8 in)- Turning circle radius
2,191 mm, 2,263 mm, 2,333 mm, 2,374 mm, 2,449 mm
(86.3 in, 89.1 in, 91.9 in, 93.5 in, 96.4 in)- Travel speed
Max.: 20 km/h
(12.4 mph)Min.: 17.3 km/h
(10.7 mph)- Lifting speed
Max.: 0.65 m/s
(2.133 ft/s)Min.: 0.37 m/s
(1.214 ft/s)- Lowering speed
Max.: 0.6 m/s
(1.969 ft/s)Min.: 0.38 m/s
(1.247 ft/s)- Rated drawbar pull
Max.: 21,000 N
Min.: 15,074 N
- Gradeability
Max.: 33 %
Min.: 19 %
- Rated output
Max.: 44 kW
(59.8 hp)Min.: 34.1 kW
(46.4 hp)- Rated speed
2,200 rpm, 2,300 rpm, 2,400 rpm, 2,500 rpm
(13,823 rad.min-1, 14,451.3 rad.min-1, 15,079.6 rad.min-1, 15,708 rad.min-1)- Cubic capacity
Max.: 64 l
(16.9 gal)Min.: 34.2 l
(9 gal)- Maximum operating pressure
175 bar, 180 bar
(2,538.2 psi, 2,610.7 psi)- Oil flow
60 l/min, 64 l/min
(15.9 us gal/min, 16.9 us gal/min)- Noise level
Max.: 101 dB
Min.: 77 dB
Description
Designing your own Hyster H2.0-3.5A forklift truck, you get the comfort, cost and
performance benefits that suit your operation and your operators’ needs. Plus, you get a
materials handling solution that suits your budget, as you are not including features that
you do not require.
•Exceptional visibility
•Operator-Centric Design
•Low Total Cost of Ownership
•High Performance and Productivity
•Operator Assist Technology
•Optional Dynamic Stability System (DSS)
COMFORT, LOW COST, AND PERFORMANCE
DYNAMIC STABILITY SYSTEM
The optional maintenance-free DSS solution helps to reduce the likelihood of tip overs and reminds operators of safe operating practices by monitoring operating conditions and automatically limiting truck functionality when potentially unsafe conditions are detected.
To take your operational safety to the next level, pair the optional DSS with a professional grade forklift training program and optional Hyster Tracker telematics. When you start operators with a solid training foundation, put Hyster DSS technology in play, and enable supervisors with Hyster Tracker to monitor operator performance in real time, you have the right tools to improve safety in your work environment.
