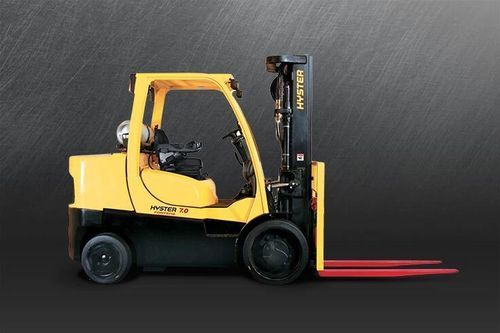

Combustion engine forklift S6.0-7.0 FT

ride-onindoorindustrial

Overview
The S6.0-7.0FT is an internal-combustion lift truck series designed for indoor heavy-duty applications such as primary metals, stone, clay, glass and concrete products, and industrial/commercial machinery.

Key features

• Reduced downtime
• Low cost of operation
• Operator comfort focused design
• Enhanced productivity
• Performance configuration options

Reduced downtime
Downtime on industrial lift trucks typically stems from powertrain, electrical, cooling or hydraulic issues. The S6.0-7.0FT series incorporates design features to minimise these interruptions.

• Robust transmission gears and shafts
• Electronically controlled powershift transmissions with heavy-duty clutch packs
• Kubota turbo diesel engine with advanced combustion for improved fuel economy
• Air-to-air intercoolers to increase efficiency and reduce emissions
• Cast ductile iron steer axle for durability and steering control
• Emissions system with Diesel Oxidation Catalyst (DOC) to reduce particulate matter

Low cost of operation
The series is configured to be efficient, reliable and serviceable to lower operating costs over its lifecycle.

• Kubota 3.8L DOC engine provides maintenance-free emissions — no fluids or filter removal required for cleaning
• Optional Hyster® Variable Power Technology™ for selectable performance or fuel-economy modes
• Auto Deceleration System extends brake life by slowing the truck when the accelerator is released
• Controlled power reversal reduces tyre spin and increases tyre life

Built for comfort
An ergonomically designed operator compartment improves comfort and productivity for long shifts.

• Low noise level at operator ear to reduce fatigue
• Isolated drivetrain to minimise vibration and road-born shocks
• Choice of five seat options for tailored comfort
• Grid-style overhead guard for improved visibility while protecting the operator
• Curved front leg design for greater shoulder clearance and easier entry/exit
• Swing-out bracket for simplified changeout
• Advanced backlit, non-reflective LCD dash display

Enhanced productivity

• Hyster® Variable Power Technology™ provides adjustable performance modes
• Pacesetter VSM enables adjustment and optimisation of performance
• DuraMatch™ transmissions include Auto Deceleration System, controlled rollback on ramps and controlled power reversals
• Optional on-demand cooling reduces overheating and periodically reverses fan direction to clear radiator debris

Performance options
The S6.0-7.0FT series offers options including higher-output engines, performance transmissions, hydraulic controls and enhanced cooling to configure the truck for specific tasks.

• Engine choices deliver improved fuel efficiency
• Pacesetter VSM industrial on-board computer for performance tuning
• Patented DuraMatch™ transmission features including Auto Deceleration System and controlled power reversals
• Enhanced cooling and extended drawbar pull options

Industry suitability
Well suited to paper, manufacturing, recycling, beverage, metals and construction industries, and any indoor application with space constraints.

Models and specifications (table)
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight | Engine | Transmission
S6.0FT | 6000 kg | 600 mm | 5600 mm | 2585 mm | 1438 mm | 8667 kg | Kubota 3.8L Diesel / PSI 4.3L LPG | ElectronicPowershift 2-speed / ElectronicPowershift 2-speed with Soft Shift Power reversal
S7.0FT | 7000 kg | 600 mm | 5600 mm | 2585 mm | 1438 mm | 9531 kg | Kubota 3.8L Diesel / PSI 4.3L LPG | ElectronicPowershift 2-speed / ElectronicPowershift 2-speed with Soft Shift Power reversal

Additional product information
Available spec sheets: S6.0-7.0FT Diesel Spec Sheet; S6.0-7.0FT LPG Spec Sheet.

Technical specifications

• Series designation: S6.0-7.0FT
• Intended use: indoor heavy-duty applications (metals, stone, clay, glass, concrete products, industrial/commercial machinery)
• Models: S6.0FT (6000 kg), S7.0FT (7000 kg)
• Load centre: 600 mm
• Maximum lift height: 5600 mm
• Turning radius: 2585 mm
• Overall width: 1438 mm
• Operating weight: S6.0FT 8667 kg; S7.0FT 9531 kg
• Engine options: Kubota 3.8L Diesel; PSI 4.3L LPG
• Transmission: ElectronicPowershift 2-speed; option with Soft Shift Power reversal
• Emissions controls: Diesel Oxidation Catalyst (DOC)
• Key systems: strong transmission gears and shafts; cast ductile iron steer axle; air-to-air intercoolers
• Operator features: isolated drivetrain, multiple seat options, advanced backlit LCD dash
• Optional technologies: Hyster® Variable Power Technology™, Pacesetter VSM, DuraMatch™ transmission features, optional on-demand cooling
