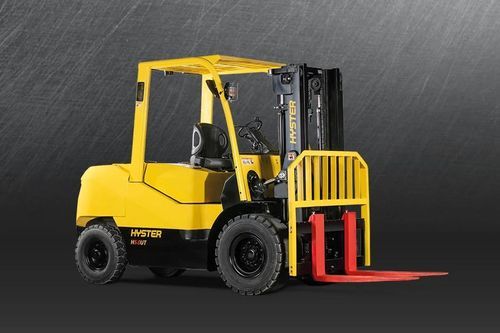

Combustion engine forklift H4.0-5.0UTride-onharboroutdoor
Add to favorites
Compare this product
Characteristics
- Motor type
- combustion engine
- Operator
- ride-on
- Applications
- handling, for materials handling, industrial, for the automotive industry, for the wood industry, harbor, for the steel industry, for warehouse, outdoor
- Other characteristics
- counterbalanced, pneumatic tire, light-duty
- Carrying capacity
Max.: 5,000 kg
(11,023.1 lb)Min.: 4,000 kg
(8,818.5 lb)- Lifting height
6,500 mm
(255.91 in)- Overall width
1,490 mm, 1,924 mm
(58.7 in, 75.7 in)- Overall length
4,280 mm, 4,345 mm
(168.5 in, 171.1 in)- Load center distance
500 mm
(19.7 in)- Weight without load
Max.: 7,010 kg
(15,454.4 lb)Min.: 6,435 kg
(14,186.7 lb)- Axle loading with maximum load front
Max.: 10,810 kg
(23,832 lb)Min.: 9,195 kg
(20,271.5 lb)- Axle loading with maximum load rear
Max.: 1,253 kg
(2,762.4 lb)Min.: 1,200 kg
(2,645.5 lb)- Axle loading without load front
Max.: 3,160 kg
(6,966.6 lb)Min.: 2,910 kg
(6,415.5 lb)- Axle loading without load rear
Max.: 3,850 kg
(8,487.8 lb)Min.: 3,360 kg
(7,407.5 lb)- Track width front
1,190 mm
(46.9 in)- Track width rear
1,130 mm
(44.5 in)- Height of mast when lowered
2,250 mm
(88.6 in)- Free lift
150 mm, 155 mm
(5.9 in, 6.1 in)- Overall height with mast raised
4,260 mm
(167.7 in)- Height to top of overhead guard
2,250 mm, 2,400 mm
(88.6 in, 94.5 in)- Seat height
1,350 mm
(53.1 in)- Tow couplig height
340 mm
(13.4 in)- Length to fork face
3,210 mm, 3,275 mm
(126.4 in, 128.9 in)- Fork carriage width
1,380 mm
(54.3 in)- Ground clearance under mast with load
130 mm
(5.1 in)- Ground clearance at center of wheelbase with load
186 mm
(7.3 in)- Turning circle radius
Max.: 2,905 mm
(114.4 in)Min.: 2,850 mm
(112.2 in)- Travel speed
Max.: 28 km/h
(17.4 mph)Min.: 15 km/h
(9.3 mph)- Lifting speed
530 mm/s, 560 mm/s
- Lowering speed
Max.: 500 mm/s
Min.: 450 mm/s
- Rated drawbar pull
Max.: 33,000 N
Min.: 21,000 N
- Gradeability
Max.: 25 %
Min.: 20 %
- Maximum operating pressure
195 bar
(2,828.2 psi)- Oil flow
70 l/min
(18.5 us gal/min)- Noise level
81.5 dB, 83 dB, 88 dB
Description
Overview
The H4.0-5.0UT series are internal combustion counterbalance forklifts designed for light‑duty industrial applications where manoeuvrability, visibility and cost effectiveness are required.
Key features
Product summary
The H4.0-5.0UT range offers a choice of engines (Diesel, LPG, Dual Fuel), mast options (LFL and FFL) and carriage/ fork configurations including integrated side shift. These models balance lifting performance and operator visibility to suit warehousing, distribution and light manufacturing tasks.
Efficient and reliable
Robust components combined with efficient filtration and cooling reduce wear and support reliable operations. Masts are available with a wide window and tilt options for clear sightlines. Hoses are routed to minimise twisting and protect hydraulic components.
Operator-friendly
The operator compartment is ergonomically arranged with controls within easy reach. Options include an adjustable full-suspension seat and a clear 3.5-inch LCD for truck information. An optional rear drive handle with integrated horn aids reverse manoeuvres.
Low cost of ownership
Sealed tilt cylinders and a one-piece welded frame with many cast components reduce contamination and structural wear. Fast availability of cost-effective replacement parts lowers service time and expenditure.
Simple to maintain
Routine service points are accessible without special tools. The removable floor plate and quick-release hood (opens to 80°) provide straightforward access to core components for inspection and repair.
Industry applications
Models and specifications
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | AST (wide / long) | Overall Width | Weight | Engine
H4.0UT | 4000 kg | 500 mm | 6500 mm | 2850 mm | 4825 mm | 1490/1924 mm | 6435 kg | Diesel / LPG / Dual Fuel
H4.5UT | 4500 kg | 500 mm | 6500 mm | 2850 mm | 4825 mm | 1490/1924 mm | 6670 kg | Diesel / LPG / Dual Fuel
H5.0UT | 5000 kg | 500 mm | 6500 mm | 2905 mm | 4885 mm | 1490/1924 mm | 7010 kg | Diesel / LPG / Dual Fuel
Technical specifications
The H4.0-5.0UT series are internal combustion counterbalance forklifts designed for light‑duty industrial applications where manoeuvrability, visibility and cost effectiveness are required.
Key features
- Load capacities: 4,000–5,000 kg (at 500 mm load centre)
- Maximum lift height up to 6,500 mm
- Travel speed up to 28 km/h
- Pneumatic tyres for outdoor and mixed-surface use
Product summary
The H4.0-5.0UT range offers a choice of engines (Diesel, LPG, Dual Fuel), mast options (LFL and FFL) and carriage/ fork configurations including integrated side shift. These models balance lifting performance and operator visibility to suit warehousing, distribution and light manufacturing tasks.
Efficient and reliable
Robust components combined with efficient filtration and cooling reduce wear and support reliable operations. Masts are available with a wide window and tilt options for clear sightlines. Hoses are routed to minimise twisting and protect hydraulic components.
Operator-friendly
The operator compartment is ergonomically arranged with controls within easy reach. Options include an adjustable full-suspension seat and a clear 3.5-inch LCD for truck information. An optional rear drive handle with integrated horn aids reverse manoeuvres.
Low cost of ownership
Sealed tilt cylinders and a one-piece welded frame with many cast components reduce contamination and structural wear. Fast availability of cost-effective replacement parts lowers service time and expenditure.
Simple to maintain
Routine service points are accessible without special tools. The removable floor plate and quick-release hood (opens to 80°) provide straightforward access to core components for inspection and repair.
Industry applications
- Automotive
- Chemicals
- Logistics and distribution
- Metals
- Paper
- Ports and terminals
- Retail
- Wood industry
Models and specifications
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | AST (wide / long) | Overall Width | Weight | Engine
H4.0UT | 4000 kg | 500 mm | 6500 mm | 2850 mm | 4825 mm | 1490/1924 mm | 6435 kg | Diesel / LPG / Dual Fuel
H4.5UT | 4500 kg | 500 mm | 6500 mm | 2850 mm | 4825 mm | 1490/1924 mm | 6670 kg | Diesel / LPG / Dual Fuel
H5.0UT | 5000 kg | 500 mm | 6500 mm | 2905 mm | 4885 mm | 1490/1924 mm | 7010 kg | Diesel / LPG / Dual Fuel
Technical specifications
- Series: H4.0-5.0UT
- Capacities: 4000, 4500, 5000 kg (at 500 mm)
- Max lift height: up to 6500 mm
- Turning radius: 2850–2905 mm (model dependent)
- Overall width options: 1490 mm / 1924 mm
- Travel speed: up to 28 km/h
- Engine options: Diesel, LPG, Dual Fuel
- Operator features: adjustable full suspension seat, 3.5" LCD, optional rear drive handle
- Maintenance: removable floor plate, quick-release hood (80°), no special tools required
