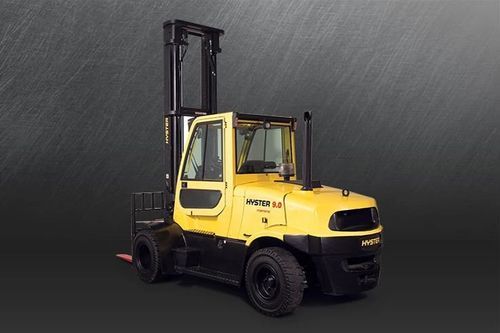

Forklift with combustion engine H8.0-9.0FT

ride-onfor the construction industryfor the recycling industry

Overview
This series of internal combustion pneumatic-tyre forklifts offers a powerful, compact materials-handling solution for applications demanding high reliability and low operating cost. Diesel or LPG engines are available with Fortens, Fortens Advance and Fortens Advance+ configurations, suited to paper, manufacturing, recycling, beverage, metals and construction industries where space is constrained.

Key features

• Efficient heavy‑duty engine
• DuraMatch™ 3 transmission with ADS
• Active regenerating DPF and low emissions
• Ergonomic operator cab
• Easy service access and diagnostics

Efficient engine
The industrial cast‑iron block engine has no high‑tension leads, distributor caps or rotors. Rapid glow plugs and a cold‑start device optimise injection timing by water temperature for reliable cold starts and cleaner exhaust. Fuel injection timing is controlled by engine load; cooling‑on‑demand, load‑sensing hydraulics, RPM management and alternate idle speeds reduce fuel use. ECO‑eLo mode can lower energy consumption up to 15% versus previous generations.

DuraMatch™ 3 transmission
DuraMatch™ 3 features an Auto Deceleration System (ADS) with 10 programmable settings to extend brake life and improve load positioning. The Pacesetter VSM™ manages smooth direction changes by reducing throttle, initiating auto‑deceleration to stop, changing transmission direction and restoring throttle to accelerate.

Low emissions
An actively regenerating Diesel Particulate Filter (DPF) reduces service interventions and is monitored on an operator‑level display. Auto‑Speed Hydraulics with Automatic Inching Control increases engine speed when lifting to ensure full hydraulic power while the VSM™ prevents unintended travel until the accelerator is pressed.

Ergonomic cab
Operator space is optimised with an updated overhead guard and expanded floor area.

• Three‑point entry with 32.1 cm step height
• Isolated operator compartment to reduce vibration
• Adjustable armrest with E‑hydraulic TouchPoint™ mini‑levers that move with the seat
• Rear grab handle with horn button for reverse driving
• Infinitely adjustable steering column, 30 cm steering wheel with spinner knob and full‑suspension seat

Efficient servicing
Gull‑wing hood provides access to both sides of the engine compartment and simplified wiring/hydraulic layout for faster repairs. The Pacesetter VSM™ over CANbus enables performance tuning and rapid diagnostics. Hydraulic ORFS fittings and non‑mechanical Hall‑Effect sensors improve reliability.

Models and Specifications
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight | Engine | Transmission
H8.0FT-9 | 8000kg | 900mm | 6065mm | 3794mm | 2239mm | 12417kg | Kubota 3.8L Diesel / GM 5.7L | DuraMatch™ 3, 3-speed
H9.0FT-6 | 9000kg | 600mm | 6065mm | 3794mm | 2239mm | 11956kg | Kubota 3.8L Diesel / GM 5.7L | DuraMatch™ 3, 3-speed

Technical specifications

• Series / Model: H8.0-9.0FT (H8.0FT-9, H9.0FT-6)
• Load capacity: 8000–9000 kg
• Load centres: 900 mm (H8.0FT-9), 600 mm (H9.0FT-6)
• Lift height: 6065 mm
• Turning radius: 3794 mm
• Overall width: 2239 mm
• Weights: 12417 kg (H8.0FT-9), 11956 kg (H9.0FT-6)
• Engine options: Kubota 3.8L Diesel or GM 5.7L
• Transmission: DuraMatch™ 3, 3‑speed with ADS and Pacesetter VSM™
• Emissions: active regenerating DPF with performance monitoring
• Fuel/efficiency features: cooling on demand, load sensing hydraulics, RPM management, alternate idle speeds, ECO‑eLo mode
• Operator environment: expanded floor space, three‑point entry, adjustable armrest with integrated mini‑levers, adjustable steering column and full‑suspension seat
• Serviceability: gull‑wing hood access, CANbus diagnostics, leak‑free ORFS fittings, Hall‑Effect sensors
• Telematics & safety options: wireless fleet telemetry and optional pedestrian awareness camera system
