Diesel engine forklift H1.6-2.0A
ride-onfor the automotive industryindustrial

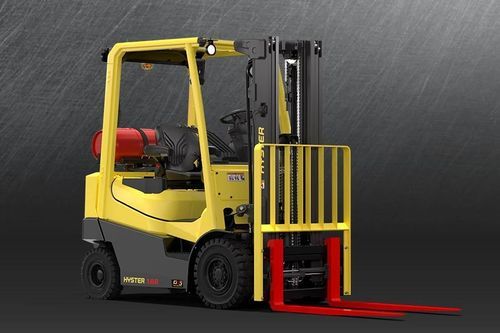

Diesel engine forklift - H1.6-2.0A - HYSTER - ride-on / for the automotive industry / industrial
Diesel engine forklift - H1.6-2.0A - HYSTER - ride-on / for the automotive industry / industrial
Diesel engine forklift - H1.6-2.0A - HYSTER - ride-on / for the automotive industry / industrial - image - 2
Diesel engine forklift - H1.6-2.0A - HYSTER - ride-on / for the automotive industry / industrial - image - 3
Diesel engine forklift - H1.6-2.0A - HYSTER - ride-on / for the automotive industry / industrial - image - 4
Diesel engine forklift - H1.6-2.0A - HYSTER - ride-on / for the automotive industry / industrial - image - 5
Diesel engine forklift - H1.6-2.0A - HYSTER - ride-on / for the automotive industry / industrial - image - 6
Add to favorites
Compare this product

Characteristics

Motor type
diesel engine
Operator
ride-on
Applications
transport, for materials handling, industrial, for the automotive industry
Other characteristics
pneumatic tire, for medium loads
Carrying capacity

Max.: 2,000 kg
(4,409.2 lb)

Min.: 1,600 kg
(3,527.4 lb)

Lifting height

8,050 mm
(316.93 in)

Overall width

1,070 mm, 1,251 mm
(42.1 in, 49.3 in)

Overall length

3.3 mm
(0.1 in)

Load center distance

500 mm
(19.7 in)

Weight without load

2,993 kg
(6,598.4 lb)

Axle loading with maximum load front

4 kg
(8.8 lb)

Axle loading with maximum load rear

631 kg
(1,391.1 lb)

Axle loading without load front

1.4 kg
(3.1 lb)

Axle loading without load rear

1.6 kg
(3.5 lb)

Track width front

904 mm
(35.6 in)

Track width rear

896 mm
(35.3 in)

Height of mast when lowered

2 mm
(0.1 in)

Free lift

50 mm
(2 in)

Overall height with mast raised

3.9 mm
(0.2 in)

Height to top of overhead guard

2.2 mm
(0.1 in)

Seat height

1.1 mm
(0 in)

Tow couplig height

379 mm
(14.9 in)

Length to fork face

2.3 mm
(0.1 in)

Fork carriage width

980 mm
(38.6 in)

Ground clearance under mast with load

95 mm
(3.7 in)

Ground clearance at center of wheelbase with load

126 mm
(5 in)

Turning circle radius

Max.: 2,085 mm
(82.1 in)

Min.: 2,053 mm
(80.8 in)

Travel speed

19 km/h, 20 km/h
(11.8 mph, 12.4 mph)

Lifting speed

0.59 m/s, 0.6 m/s, 0.61 m/s
(1.936 ft/s, 1.969 ft/s, 2.001 ft/s)

Lowering speed

0.47 m/s, 0.58 m/s
(1.542 ft/s, 1.903 ft/s)

Rated drawbar pull

Max.: 12.9 N

Min.: 11.9 N

Gradeability

Max.: 28 %

Min.: 16 %

Rated speed

2.1 rpm, 2.4 rpm
(13.2 rad.min-1, 15.1 rad.min-1)

Maximum operating pressure

180 bar
(2,610.7 psi)

Oil flow

40 l/min
(10.6 us gal/min)

Description

Overview

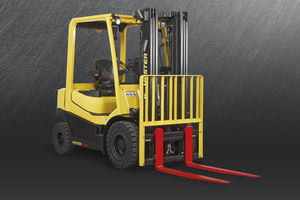

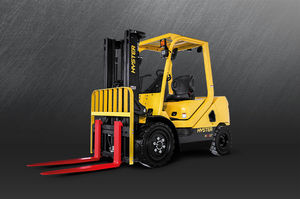

The Hyster H1.6-2.0A is an internal combustion forklift configured for pneumatic-tyre operation, available in 1600–2000 kg capacity variants. It is designed for industrial materials handling where visibility, operator ergonomics and configurability are priorities.

Key features
  • Optional Dynamic Stability System (DSS)
  • Operator-centric ergonomics and controls
  • Low total cost of ownership through reduced service intervals
  • High performance and productivity in mixed operations
  • Exceptional visibility for safe load handling


Dynamic Stability System
The optional maintenance-free DSS monitors operating conditions and reduces the risk of tip-over by automatically limiting truck functions when unsafe conditions are detected. DSS complements professional operator training and Hyster Tracker telematics for improved site safety and supervision.

Operator-centric design
  • Large step size for easy ingress/egress
  • Flip-up armrest for unobstructed access
  • Spacious floor area for operator movement
  • Dynamic seat adjustment to suit different operator sizes
  • Foot-activated, hand-released parking brake for reduced effort
  • Standard full-colour touchscreen display for quick access to truck data


Low total cost of ownership
Extended service intervals and high-quality components reduce maintenance workload and technician hours per truck, helping control operating costs.

High performance and productivity
Design features ensure clear sightlines to surroundings, aiding safe operation around other trucks, automated equipment and pedestrians.

Exceptional visibility
  • Low dashboard and wide mast for clear view of fork tips
  • Optional high-strength laminated glass roof for unobstructed upward visibility
  • Wide viewing window through the mast to improve fork and load sightlines


Industry sectors
  • Agriculture
  • Automotive & transport manufacturing
  • General manufacturing
  • Chemicals & plastics
  • Rental operators
  • Trucking and logistics


Models and specifications
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Weight | Engine
H1.6A | 1600 kg | 500 mm | 8050 mm | 2053 mm | 2993 kg | Yanmar 4TNE92
H1.8A | 1800 kg | 500 mm | 8050 mm | 2066 mm | 2993 kg | Yanmar 4TNE92
H2.0AS | 2000 kg | 500 mm | 8050 mm | 2085 mm | 2993 kg | Yanmar 4TNE92

Technical specifications
  • Series / Model: H1.6-2.0A
  • Available models: H1.6A, H1.8A, H2.0AS
  • Load capacities: 1600–2000 kg
  • Load centre: 500 mm
  • Lift height (listed): 8050 mm
  • Turning radius: 2053–2085 mm depending on model
  • Unladen weight: 2993 kg
  • Engine: Yanmar 4TNE92
  • Optional: Dynamic Stability System (DSS), laminated glass roof, Hyster Tracker telematics
