LPG forklift S4.0-5.5 FT
ride-onindoorfor the construction industry

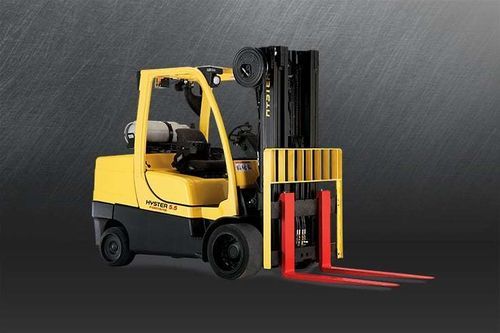

LPG forklift - S4.0-5.5 FT - HYSTER - ride-on / indoor / for the construction industry
LPG forklift - S4.0-5.5 FT - HYSTER - ride-on / indoor / for the construction industry
Add to favorites
Compare this product

Characteristics

Motor type
LPG
Operator
ride-on
Applications
for materials handling, industrial, for the construction industry, for the beverage industry, indoor
Other characteristics
heavy-duty, cushion tire
Carrying capacity

Max.: 5,500 kg
(12,125.4 lb)

Min.: 4,000 kg
(8,818.5 lb)

Lifting height

5,300 mm
(208.66 in)

Overall width

1,170 mm, 1,320 mm, 1,420 mm
(46.1 in, 52 in, 55.9 in)

Overall length

Max.: 4,061 mm
(159.9 in)

Min.: 3,630 mm
(142.9 in)

Load center distance

500 mm
(19.7 in)

Weight without load

Max.: 7,618 kg
(16,794.8 lb)

Min.: 5,795 kg
(12,775.8 lb)

Axle loading with maximum load front

Max.: 11,729 kg
(25,858 lb)

Min.: 8,607 kg
(18,975.2 lb)

Axle loading with maximum load rear

Max.: 1,572 kg
(3,465.7 lb)

Min.: 1,188 kg
(2,619.1 lb)

Axle loading without load front

Max.: 2,966 kg
(6,538.9 lb)

Min.: 2,194 kg
(4,836.9 lb)

Axle loading without load rear

Max.: 4,835 kg
(10,659.4 lb)

Min.: 3,601 kg
(7,938.8 lb)

Track width front

941 mm, 1,015 mm
(37 in, 40 in)

Track width rear

978 mm, 1,004 mm
(38.5 in, 39.5 in)

Height of mast when lowered

2,130 mm, 2,135 mm
(83.9 in, 84.1 in)

Free lift

100 mm
(3.9 in)

Overall height with mast raised

3,665 mm, 3,780 mm
(144.3 in, 148.8 in)

Height to top of overhead guard

2,171 mm, 2,175 mm
(85.5 in, 85.6 in)

Seat height

1,221 mm, 1,339 mm
(48.1 in, 52.7 in)

Tow couplig height

367 mm, 371 mm
(14.4 in, 14.6 in)

Length to fork face

2,630 mm, 2,699 mm, 2,769 mm, 2,861 mm
(103.5 in, 106.3 in, 109 in, 112.6 in)

Fork carriage width

1,070 mm
(42.1 in)

Ground clearance under mast with load

114 mm, 118 mm
(4.5 in, 4.6 in)

Ground clearance at center of wheelbase with load

152 mm, 156 mm
(6 in, 6.1 in)

Turning circle radius

Max.: 2,534 mm
(99.8 in)

Min.: 2,298 mm
(90.5 in)

Travel speed

Max.: 22.5 km/h
(14 mph)

Min.: 17.7 km/h
(11 mph)

Lifting speed

0.56 m/s, 0.57 m/s, 0.61 m/s, 0.62 m/s
(1.837 ft/s, 1.87 ft/s, 2.001 ft/s, 2.034 ft/s)

Lowering speed

Max.: 0.55 m/s
(1.804 ft/s)

Min.: 0.42 m/s
(1.378 ft/s)

Rated drawbar pull

Max.: 41,944 N

Min.: 12,804 N

Gradeability

Max.: 45.6 %

Min.: 14.1 %

Rated output

54.9 kW, 67.8 kW
(74.6 hp, 92.2 hp)

Rated speed

2,200 rpm
(13,823 rad.min-1)

Cubic capacity

0 m³
(0 ft³)

Maximum operating pressure

155 bar
(2,248.1 psi)

Oil flow

83.3 l/min
(22 us gal/min)

Noise level

84 dB, 102 dB, 106 dB

Description

Overview
Designed for indoor use, the Fortens® S4.0-5.5FT lift truck series is suited for applications such as paper manufacturing, industrial/commercial machinery and primary metal products.

Key benefits
  • Decreased downtime
  • Low cost of operation
  • Built for comfort
  • Enhanced productivity
  • Proven stability

Decreased downtime
Industrial lift truck downtime results from problems with the powertrain, brakes, electrical system, cooling system or hydraulic system. Advanced design of the S4.0-5.5FT truck series helps to reduce that downtime.
  • Pacesetter VSM industrial onboard computer monitors and protects the powertrain to maximise uptime.
  • Strong transmission gears and shafts handle the most demanding duty cycle.
  • Electronic-controlled powershift transmission has state-of-the-art, strong clutch packs that provide longer life.
  • Heavy Duty Premium wet disc brakes provide excellent stopping power and extremely long service life. Brakes are completely sealed from water and dirt making them ready for tough environments.

Low cost of operation
The S4.0-5.5FT series is configured to provide improved efficiency, while enhancing reliability and superior serviceability to reduce your operating costs.
  • The Kubota 3.8L spark-ignited LPG engine lowers the operating cost per load moved yet delivers excellent productivity.
  • Auto Deceleration System extends brake life by automatically slowing the truck when the accelerator pedal is released.
  • Optional on-demand hydraulic system manages oil flow, supplying the right amount of oil as needed, thereby reducing fuel consumption.
  • Controlled power reversal feature virtually eliminates tire spin, thereby increasing tire life.

Built for comfort
The S4.0-5.5FT series features an ergonomically designed operator compartment that enhances overall comfort and productivity.
  • Low noise level at operator ear lessens driver fatigue.
  • Isolated drivetrain minimises the effect of powertrain vibration and road-born shocks.
  • Adjustable steer column and optional full suspension seat assures the right fit.
  • Easy-to-use 3-point entry design of operator compartment uses a large molded hand grip and open non-slip step with a low step height to minimize muscle/joint strain during entry/exit.
  • Swing-out bracket simplifies changeout.
  • Optional EZXchange bracket minimizes arm and back strain for easier changeouts.
  • Increased shoulder clearance gives operators greater foot room.

Enhanced productivity
Productivity means moving more loads in less time with less cost. The S4.0-5.5FT series helps to increase productivity through performance, operator comfort and control, service time and dependability.
  • Hyster® Variable Power Technology™ provides adjustable performance modes that allow customers to maximize productivity or fuel economy.
  • Optional load-sensing on-demand hydraulic system introduces a smarter way to meet the truck’s hydraulic load demands.
  • Featuring Variable Displacement Pump (VDP) technology, the pump produces oil flow only when needed. The system minimizes the amount of engine power required, resulting in greater fuel economy.
  • Pacesetter VSM manages all vehicle systems to optimize performance and significantly increase overall reliability and enhance diagnostic capabilities for maximum uptime.

Proven stability
Our patented Hyster Stability System (HSS®) is built into the fundamental design of every truck—to allow for articulation on uneven surfaces and to minimize truck lean for enhanced lateral stability.

Models and specifications
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | Overall Width | Weight | Engine | Transmission
S4.0FT | 4000kg | 500mm | 5300mm | 2298mm | 1170 / 1270mm | 5795kg | Kubota 3.8L LPG | DuraMatch™ 1-speed / DuraMatch™ 2, 2-speed
S4.5FT | 4500kg | 500mm | 5300mm | 2447mm | 1320 / 1420mm | 6977kg | Kubota 3.8L LPG | DuraMatch™ 1-speed / DuraMatch™ 2, 2-speed
S5.0FT | 5000kg | 500mm | 5300mm | 2534mm | 1320 / 1420mm | 7595kg | Kubota 3.8L LPG | DuraMatch™ 1-speed / DuraMatch™ 2, 2-speed
S5.5FTS | 5500kg | 500mm | 5300mm | 2375mm | 1320 / 1420mm | 7618kg | Kubota 3.8L LPG | DuraMatch™ 1-speed / DuraMatch™ 2, 2-speed

Features / technical specifications
  • Series: S4.0-5.5FT (Fortens®)
  • Capacity range: 4000–5500 kg
  • Load centre: 500 mm
  • Lift height: 5300 mm
  • Engine: Kubota 3.8L LPG
  • Transmission: DuraMatch™ 1-speed or DuraMatch™ 2 2-speed (model dependent)
  • Turning radius: 2298–2534 mm (model dependent)
  • Overall width: 1170 / 1270 mm or 1320 / 1420 mm (model dependent)
  • Weight: 5795–7618 kg (model dependent)
  • Designed for indoor heavy-duty applications including paper, manufacturing, bottling and construction industries
