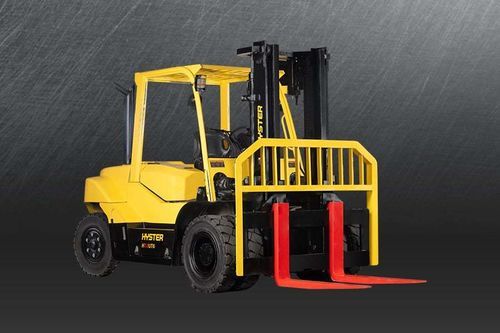

Combustion engine forklift H5.0-7.0UTride-onindustrialfor materials handling
Add to favorites
Compare this product
Characteristics
- Motor type
- combustion engine
- Operator
- ride-on
- Applications
- for materials handling, industrial
- Other characteristics
- counterbalanced, heavy-duty, pneumatic tire, for heavy loads
- Carrying capacity
Max.: 7,000 kg
(15,432.4 lb)Min.: 5,000 kg
(11,023.1 lb)- Lifting height
6,500 mm
(255.91 in)- Overall width
2,020 mm
(79.5 in)- Overall length
Max.: 4,830 mm
(190.2 in)Min.: 4,715 mm
(185.6 in)- Load center distance
600 mm
(23.6 in)- Weight without load
Max.: 9,650 kg
(21,274.6 lb)Min.: 8,360 kg
(18,430.6 lb)- Axle loading with maximum load front
Max.: 13,450 kg
(29,652.2 lb)Min.: 12,090 kg
(26,653.9 lb)- Axle loading with maximum load rear
Max.: 1,750 kg
(3,858.1 lb)Min.: 1,270 kg
(2,799.9 lb)- Axle loading without load front
3,840 kg, 4,050 kg, 4,380 kg
(8,465.8 lb, 8,928.7 lb, 9,656.2 lb)- Axle loading without load rear
4,520 kg, 4,630 kg, 5,600 kg
(9,964.9 lb, 10,207.4 lb, 12,345.9 lb)- Track width front
1,489 mm
(58.6 in)- Track width rear
1,700 mm
(66.9 in)- Height of mast when lowered
2,500 mm, 2,625 mm
(98.4 in, 103.3 in)- Free lift
205 mm
(8.1 in)- Overall height with mast raised
4,425 mm
(174.2 in)- Height to top of overhead guard
2,450 mm
(96.5 in)- Seat height
1,400 mm
(55.1 in)- Tow couplig height
345 mm
(13.6 in)- Length to fork face
3,495 mm, 3,565 mm, 3,610 mm
(137.6 in, 140.4 in, 142.1 in)- Fork carriage width
1,845 mm
(72.6 in)- Ground clearance under mast with load
200 mm
(7.9 in)- Ground clearance at center of wheelbase with load
230 mm
(9.1 in)- Turning circle radius
Max.: 3,360 mm
(132.3 in)Min.: 3,250 mm
(128 in)- Travel speed
Max.: 31 km/h
(19.3 mph)Min.: 9 km/h
(5.6 mph)- Lifting speed
430 mm/s, 440 mm/s, 460 mm/s
- Lowering speed
400 mm/s, 500 mm/s
- Rated drawbar pull
Max.: 65,000 N
Min.: 36,000 N
- Gradeability
Max.: 33 %
Min.: 20 %
- Maximum operating pressure
195 bar
(2,828.2 psi)- Oil flow
80 l/min
(21.1 us gal/min)- Noise level
81.4 dB, 83 dB, 86 dB
Description
Overview
The H5.0-7.0UT series is an internal combustion counterbalance forklift designed for lower-hour industrial applications. Available with lift heights up to 6.5 m, rated capacities from 5,000 to 7,000 kg and travel speeds up to 28 km/h, the range balances load handling performance with serviceability and running costs. Hyster components and design choices focus on reliable operation and ease of use.
Efficient and reliable
Operator-friendly
The operator cab provides a practical, ergonomic working environment. Controls are within easy reach and the adjustable full-suspension seat enhances comfort for extended shifts. The clear 3.5-inch LCD display gives essential truck information at a glance. An optional rear drive handle with integrated horn aids reverse manoeuvres.
Low cost of ownership
Design features reduce wear and maintenance requirements: sealed tilt cylinders reduce contamination risk and the one-piece welded frame with many cast components limits structural fatigue. Readily available, cost-effective replacement parts help lower total service costs.
Simple to maintain
No special tools are required for routine diagnostics and servicing. Regular service points are easily accessible. The removable floor plate and quick-release hood (opens to 80°) provide rapid access to major components.
Models and specifications (table)
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | AST (wide / long) | Overall Width | Weight | Engine
H5.0UT | 5000 kg | 600 mm | 6500 mm | 3250 mm | 5260 mm | 2020 mm | 8360 kg | Diesel / LPG
H6.0UT | 6000 kg | 600 mm | 6500 mm | 3300 mm | 5310 mm | 2020 mm | 9010 kg | Diesel / LPG
H7.0UT | 7000 kg | 600 mm | 6500 mm | 3360 mm | 5370 mm | 2020 mm | 9650 kg | Diesel / LPG
Downloads
H5.0-7.0UT Tech Guide (product technical guide available as PDF).
Technical characteristics / specifications
The H5.0-7.0UT series is an internal combustion counterbalance forklift designed for lower-hour industrial applications. Available with lift heights up to 6.5 m, rated capacities from 5,000 to 7,000 kg and travel speeds up to 28 km/h, the range balances load handling performance with serviceability and running costs. Hyster components and design choices focus on reliable operation and ease of use.
Efficient and reliable
- Robust components, efficient filtration and cooling to minimise wear
- Mast options: LFL and FFL with wide mast window and tilt options for clear load visibility
- Hydraulics: hoses routed and centred on the free lift cylinder to prevent twisting
- Multiple carriage and fork options including integrated side-shift
Operator-friendly
The operator cab provides a practical, ergonomic working environment. Controls are within easy reach and the adjustable full-suspension seat enhances comfort for extended shifts. The clear 3.5-inch LCD display gives essential truck information at a glance. An optional rear drive handle with integrated horn aids reverse manoeuvres.
Low cost of ownership
Design features reduce wear and maintenance requirements: sealed tilt cylinders reduce contamination risk and the one-piece welded frame with many cast components limits structural fatigue. Readily available, cost-effective replacement parts help lower total service costs.
Simple to maintain
No special tools are required for routine diagnostics and servicing. Regular service points are easily accessible. The removable floor plate and quick-release hood (opens to 80°) provide rapid access to major components.
Models and specifications (table)
Model | Load Capacity | Load Centre | Lift Height | Turning Radius | AST (wide / long) | Overall Width | Weight | Engine
H5.0UT | 5000 kg | 600 mm | 6500 mm | 3250 mm | 5260 mm | 2020 mm | 8360 kg | Diesel / LPG
H6.0UT | 6000 kg | 600 mm | 6500 mm | 3300 mm | 5310 mm | 2020 mm | 9010 kg | Diesel / LPG
H7.0UT | 7000 kg | 600 mm | 6500 mm | 3360 mm | 5370 mm | 2020 mm | 9650 kg | Diesel / LPG
Downloads
H5.0-7.0UT Tech Guide (product technical guide available as PDF).
Technical characteristics / specifications
- Lift capacities: 5,000–7,000 kg (H5.0UT, H6.0UT, H7.0UT)
- Maximum lift height: up to 6,500 mm
- Load centre: 600 mm
- Turning radius: 3,250–3,360 mm depending on model
- AST (wide / long): 5,260–5,370 mm depending on model
- Overall width: 2,020 mm
- Vehicle weight (approx): 8,360–9,650 kg depending on model
- Engine options: Diesel or LPG
- Travel speeds: up to 28 km/h
- Mast options: LFL and FFL; wide mast window and tilt choices
- Carriages/forks: various options including integrated side-shift
- Operator features: adjustable full-suspension seat; 3.5-inch LCD display; optional rear drive handle with integrated horn
- Maintenance features: sealed tilt cylinders; one-piece welded frame with many cast components; removable floor plate; quick-release hood (80°); no special tools required for diagnostics and servicing
