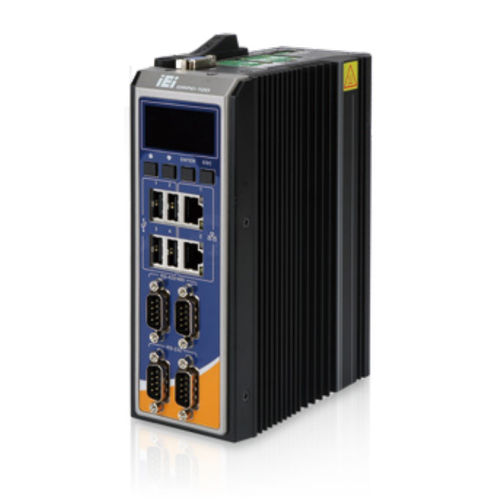

Embedded computer DRPC-100-CV
Intel Atom N2800Ethernetfanless

embedded computer
embedded computer
embedded computer
Add to favorites
Compare this product

Characteristics

Type
embedded
Processor
Intel Atom N2800
Ports
Ethernet
Other characteristics
fanless
Field
network, industrial

Description

This is supported by the Intel® Atom™ N2800 processor. It consumes very less power thanks to [N2800 + NM10 (6.5w +1.5w)]. It has Intel® GMA 3650 with 640 MHz and can run Blu-ray 2.0, DirectX 9, MPEG-2, as well as H.264, C-1 with 1080p decoding. It can support 1066 MHz DDR3 SO-DIMM up to 4 GB. It has one mSATA, one SATA DOM and one CompactFlash®. It has a wide range of DC power input (9V~28V). For additional functions it has one PCIe Mini expansion slot. It also supports two GbE, four USB 2.0, two RS-232, two RS-422/485, two CAN-bus and one 8-bit DIO. It has various interfaces such as Serial, CAN-bus and Digital I/O coming with isolation protection. It is fanless and can support -25ºC to 65ºC (with SSD) temperature. It has dual PCIe GbE LAN which enables fast and reliable internet. Lastly, it also features an OLED display which is programmable.
