Electric duct heater
Add to favorites
Compare this product
Characteristics
- Power source
- electric
Description
Product overview

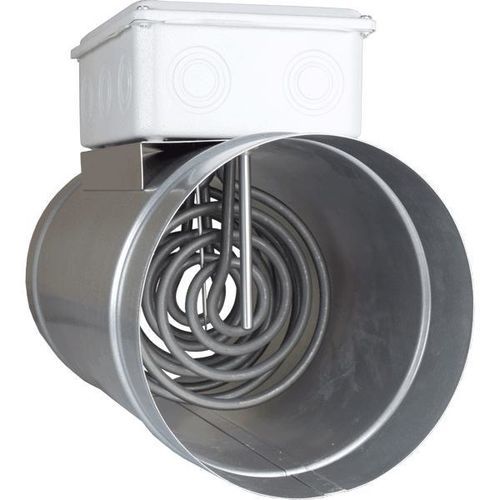

Duct heaters are electric heating units designed to heat flowing gases (air, nitrogen, oxygen and others) up to 900°C. They are custom-designed for process, manufacturing and marine industries and for demanding HVAC applications where high-temperature gas heating is required.
Design and construction
Depending on required temperature rise, flow rate and gas velocity, we select between tubular heaters, finned tubular heaters or spiralized open-resistance wire. The heaters are installed in a mild steel or stainless steel duct, tube or custom frame. Heater clusters increase heat transfer efficiency and turbulence within the flow.
Control and integration
Control options include built-in sensors, thermostats, thermocouples and flow sensors. Systems can be supplied with control panels and fully integrated heating systems, or as retrofit units compatible with existing plant controls.
Technical specifications
Duct heaters are electric heating units designed to heat flowing gases (air, nitrogen, oxygen and others) up to 900°C. They are custom-designed for process, manufacturing and marine industries and for demanding HVAC applications where high-temperature gas heating is required.
Design and construction
Depending on required temperature rise, flow rate and gas velocity, we select between tubular heaters, finned tubular heaters or spiralized open-resistance wire. The heaters are installed in a mild steel or stainless steel duct, tube or custom frame. Heater clusters increase heat transfer efficiency and turbulence within the flow.
Control and integration
Control options include built-in sensors, thermostats, thermocouples and flow sensors. Systems can be supplied with control panels and fully integrated heating systems, or as retrofit units compatible with existing plant controls.
Technical specifications
- Maximum heater temperature: up to 900°C
- Supply voltage and power configurable to process requirements
- Heater materials: stainless steel, acid-proof stainless steel, Incoloy® 800, Incoloy® 825, NiCr 80/20 spiralized resistance wire
- Casing: mild steel or stainless steel; forms: circular duct, rectangular duct or custom frame
- Integrated control options: resistive sensors, thermocouples, thermostats, flow sensors
