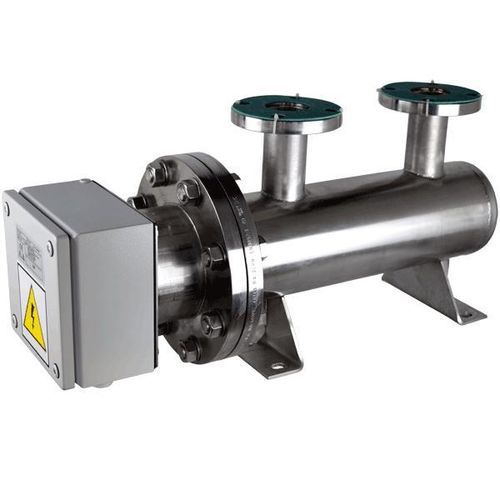

Tube heater

for gasfor liquidscirculation

Overview
A through-flow heater provides direct heating of liquids, oils and gases while they flow through the tube. Designed for industrial in-line applications, these heaters raise the medium to the required temperature at the outlet and can be configured as lower-power circulation heaters when the medium recirculates.

Design and components
A standard through-flow heater includes the tube, inlet and outlet connections, electric heating elements, flanges and connection boxes. Configurations can incorporate thermal insulation, thermostats, temperature sensors, flow and pressure sensors, and overheat protection to meet process specifications.

Control and service
Control is typically done via a separate control cabinet or a control panel connected to a PLC. For lower-power or simpler installations, a mechanical thermostat may be used. Engineering support for control system integration, installation and preventive maintenance is available.

Related products
Standard through-flow heaters and circulation heaters for closed-loop systems

Technical specification

• Application: heating of liquids, oils and gases in flow
• Design types: through-flow heater (direct heating at outlet) and circulation heater (for closed-loop recirculation)
• Main components: tube, inlet, outlet, electric heating elements, flanges, connection boxes
• Optional components: thermal insulation, thermostats, temperature sensors, flow sensors, pressure sensors, overheating protection
• Control options: separate control cabinet, control panel connected to PLC, or mechanical thermostat for simpler installations
• Supply voltages: 230V, 400V or 690V
• Tube material options: carbon steel, stainless steel, acid-resistant stainless steel, aluminum, titanium
• Element material options: copper, stainless steel, acid-resistant stainless steel, 254 SMO, Incoloy® 800, Incoloy® 825, aluminum, titanium
• Services: process-specific design, control system support, installation and preventive maintenance
