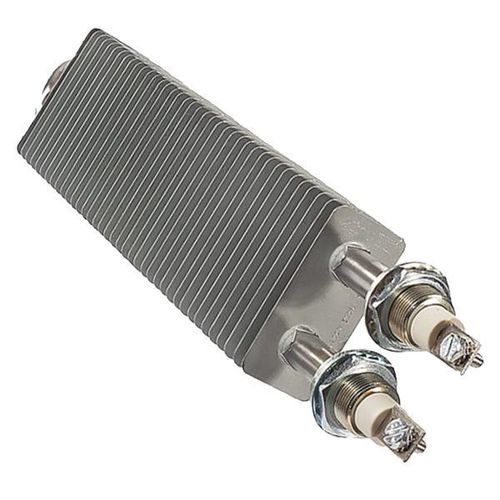

Air heater

for gasfinnedelectric

Overview
The finned tubular heater increases heat-emitting surface area to deliver efficient heating of air and process gases. Fins are formed by spiraling a thin metal plate around a resistive heating tube or by attaching rectangular plate fins.

Design and variants
Heaters are supplied in straight lengths or formed into U-, M- and S-shaped configurations. Multiple elements are commonly assembled into frames or ducts to create air-heating batteries and duct heaters.

Applications

• Duct heating and air handling units
• Convectors and radiators
• Load banks and test rigs
• Frost protection and sterilization equipment
• Industrial ovens and process heaters

Technical specifications

• Surface temperature up to 600°C
• Supply voltage and power configurable to process requirements
• Spiral fins typically stainless steel
• Rectangular plate fins typically aluzinc
• Tube materials: stainless steel, acid-resistant stainless steel, Incoloy® 800, Incoloy® 825, aluminum
• Connections: M-thread, cables, flat pin, round pin, connection box and more

Availability
Standard range available as stock items for faster delivery; custom configurations produced to order.
