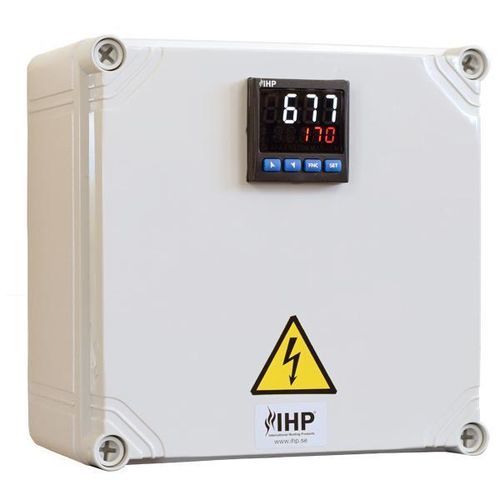

Control electric cabinet 220 series

wall-mountplasticIP65

Product overview
IHP's smallest control cabinet is a standalone system designed for single-zone heating applications using one sensor. The integrated PID controller provides functions for uniform heating, ramp control, adjustable maximum temperature, and programmable steps with multiple set points, or can operate as a simple temperature controller. The unit is CE marked and approved.

Supply & options
Control cabinets are supplied in standard versions; select the model according to the required amperage and the sensor type used in your process. IHP offers optional features such as quick plug connections between heater and cabinet and can assist with loading control parameters before delivery.

Compatibility
The control cabinet is compatible with all IHP heaters that require less than 10 A or 16 A, depending on the version.

Technical specification
Plastic casing
Electronic PID controller
Solid state relay SSR (max current 10 or 16 A)
Heater connection via terminal block
Configured for sensor types PT100 (2- or 3-wire), TCJ or TCK (sensor not included)
Controller programmable via NFC with Android smartphone
Earth breaker not included (assumes 230 V socket protected by earth breaker)
10 A version: Rubber cable 1.6 m H07RN-F (3G1.5 mm²) with Schuko plug
16 A version: CEE 230 V inlet
CE manual included

Standard range
220-10A-1-LC-001 | Control cabinet 230V 10A optimized for PT100 | Schuko | -50°C to 350°C
220-10A-1-LC-002 | Control cabinet 230V 10A optimized for TCJ | Schuko | -200°C to 600°C
220-10A-1-LC-003 | Control cabinet 230V 10A optimized for TCK | Schuko | -200°C to 1000°C
220-16A-1-LC-001 | Control cabinet 230V 16A optimized for PT100 | CEE | -50°C to 350°C
220-16A-1-LC-002 | Control cabinet 230V 16A optimized for TCJ | CEE | -200°C to 600°C
220-16A-1-LC-003 | Control cabinet 230V 16A optimized for TCK | CEE | -200°C to 1000°C
220-16A-1-LC-004 | Control cabinet IP65 230V 16A optimized for PT100 | CEE | -50°C to 350°C
220-16A-3-LC-011 | Control cabinet 400V 16A optimized for PT100 | CEE | -50°C to 350°C

Options
220-program-b | Extra function pre-programmed at delivery: b. Soft start
220-program-c | Extra function pre-programmed at delivery: c. Ramp functionality
220-program-d | Extra function pre-programmed at delivery: d. Program steps with different set points

Technical characteristics / specifications

• Plastic casing
• Electronic PID-controller
• Solid state relay SSR (max current 10 or 16 A)
• Heater connection on terminal block
• Sensor support: PT100 (2- or 3-wire), TCJ, TCK (sensor not included)
• Programmable via NFC with Android smartphone
• Earth breaker not included (assumes 230 V socket protected)
• 10 A version: Rubber cable 1.6 m H07RN-F (3G1.5 mm²) with Schuko plug
• 16 A version: CEE 230 V inlet
• CE manual included
