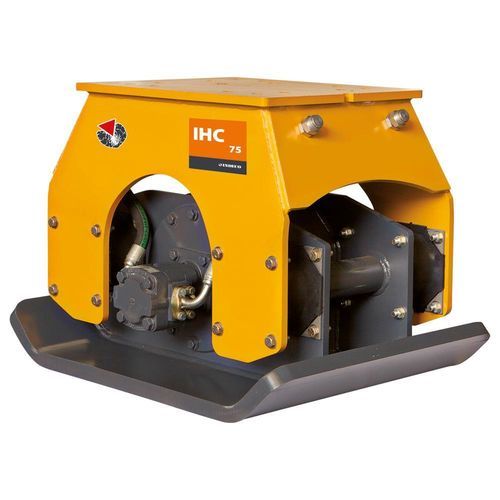

Fixed vibratory plate IHC 75

for excavatorscompacting

Product family
COMPACTORS — IHC series — IHC 75

Overview
The IHC 75 is a hydraulic compactor attachment for compact excavators and backhoe loaders. Designed for excavators weighing 4 ÷ 14 ton, it provides a centrifugal force of 4000 Kg (39 kN) for efficient ground compaction and is suited to a range of construction and civil engineering tasks.

Technical specifications

• Excavator weight: 4 ÷ 14 ton
• Equipment weight*: 485 Kg
• Height: 60 cm
• Baseplate size: 64 x 87 cm
• Centrifugal force: 4000 Kg – 39 KN
• Compacting force (Min - Med - Max): 0,7 - 0,9 - 1,1 Kg/cm² (6,9 - 8,8 - 10,8 N/cm²)
• Frequency (Min - Med - Max): 1600 - 1850 - 2100 rpm (27 - 31 - 35 Hz)
• Oil flow to motor: 55 ÷ 75 l/min
• Maximum working pressure adjusted to the excavator: 200 bar
• Maximum backpressure: 21 bar
• Attachment plate compatibility: HP 900

Type of carrier

• Compact excavator
• Backhoe loader

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are indicative and subject to change at the manufacturer's discretion without notice.
