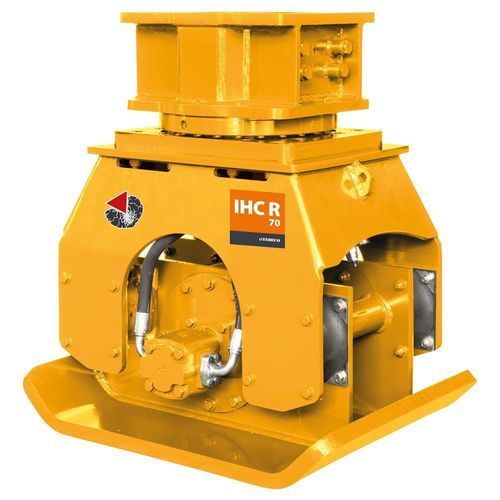

Power vibratory plate IHC R 70

for excavators

Product
Compactor attachment IHC R 70 (IHC R series) for soil and trench compaction on excavators and loaders.

Technical overview
The IHC R 70 is a hydraulic plate compactor designed for attachment to compact excavators, backhoe loaders and wheeled excavators. It delivers controlled centrifugal and compacting forces and is compatible with HP 900 attachment plates.

Technical specifications

• Excavator weight: 6.5 ÷ 16 t
• Equipment weight*: 630 Kg
• Height: 93 cm
• Baseplate size: 46 x 84 cm
• Centrifugal force: 4000 Kg – 39 KN
• Compacting force (Min - Med - Max): 0.9 - 1.1 - 1.4 Kg/cm² (8.8 - 10.8 - 13.7 N/cm²)
• Frequency (Min - Med - Max): 1600 - 1850 - 2100 rpm (27 - 31 - 35 Hz)
• Oil flow to motor: 55 ÷ 75 l/min
• Maximum working pressure adjustable to the excavator: 200 bar
• Maximum backpressure: 21 bar
• Oil delivery for rotation: 10 l/min
• Pressure regulated for rotation: 90 bar
• Attachment plate compatibility with mounting bracket: HP 900

Suitable carriers

• Compact excavator
• Backhoe loader
• Wheeled excavator

Notes

• * The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards; any differences may be due to a different mounting bracket configuration.
• N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at the manufacturer's discretion without prior notice.
