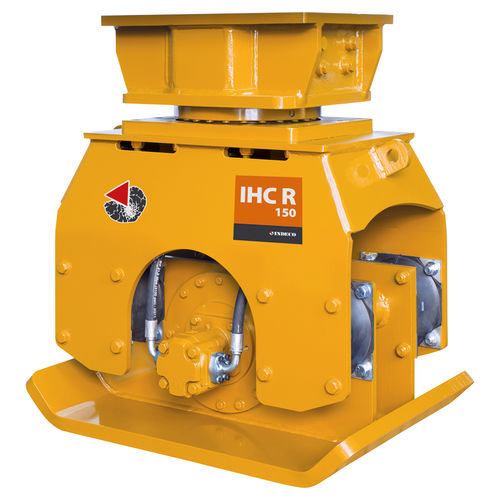

Power vibratory plate IHC R 150

for excavatorscompacting

Product overview
Hydraulic compactor from the IHC R series, model IHC R 150. Designed for mounting on wheeled or tracked excavators to perform soil compaction for trenches, foundations, backfilling and road maintenance.

Applications

• Suitable for excavators with operating weight 15 ÷ 25 t
• Trench compaction, foundation preparation, soil stabilization, repair and maintenance works

Technical specifications

• Excavator weight: 15 ÷ 25 t
• Equipment weight*: 1185 Kg
• Height: 108 cm
• Baseplate size: 71 x 120 cm
• Centrifugal force: 10000 Kg – 98 KN
• Compacting force (Min - Med - Max): 1.4 - 1.6 - 1.8 Kg/cm² (13.7 - 15.7 - 17.7 N/cm²)
• Frequency (Min - Med - Max): 1800 - 1950 - 2100 rpm (30 - 33 - 35 Hz)
• Oil flow to motor: 100 ÷ 120 l/min
• Maximum working pressure adjusted to the excavator: 200 bar
• Maximum backpressure: 21 bar
• Oil delivery for rotation: 10 l/min
• Pressure regulated for rotation: 90 bar
• Compatibility of attachment plate with mounting bracket: HP 2000 - HP 2500
• Type of carrier: Wheeled excavator; Tracked excavator

Compatibility & installation
Mounting bracket conforms to Indeco construction standards. Adjust hydraulic flow and maximum working pressure on the carrier according to the specifications above. Verify adapter plate compatibility and secure attachment before operation.

Notes
* The operating weight includes the mounting bracket compatible with Indeco standards. Illustrations and numerical data are indicative and subject to change without notice.
