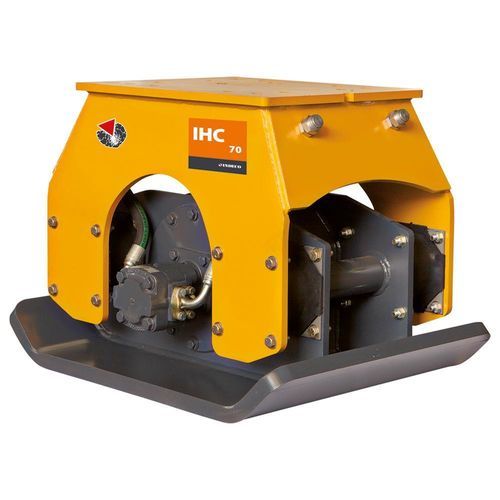

Fixed vibratory plate IHC 70

for excavatorscompacting

Product
COMPACTORS
Series
IHC series
Model
IHC 70

Technical specifications (table)
Excavator weight: 3.5 ÷ 13 t
Equipment weight*: 445 kg
Height: 60 cm
Baseplate size: 46 x 84 cm
Centrifugal force: 4000 Kg – 39 kN
Compacting force (Min - Med - Max): 0.9 - 1.1 - 1.4 Kg/cm² (8.8 - 10.8 - 13.7 N/cm²)
Frequency (Min - Med - Max): 1600 - 1850 - 2100 rpm (27 - 31 - 35 Hz)
Oil flow to motor: 55 ÷ 75 l/min
Maximum working pressure adjusted to the excavator: 200 bar (20 MPa)
Maximum backpressure: 21 bar (2.1 MPa)
Compatibility of attachment plate with mounting bracket: HP 900
Type of carrier: Compact excavator; Backhoe loader

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Characteristics / Technical specifications

• Excavator weight: 3.5 ÷ 13 t
• Equipment operating weight*: 445 kg
• Height: 60 cm
• Baseplate size: 46 x 84 cm
• Centrifugal force: 4000 Kg – 39 kN
• Compacting force (Min - Med - Max): 0.9 - 1.1 - 1.4 Kg/cm² (8.8 - 10.8 - 13.7 N/cm²)
• Frequency (Min - Med - Max): 1600 - 1850 - 2100 rpm (27 - 31 - 35 Hz)
• Oil flow to motor: 55 ÷ 75 l/min
• Maximum working pressure (adjusted to excavator): 200 bar (20 MPa)
• Maximum backpressure: 21 bar (2.1 MPa)
• Attachment plate compatibility: HP 900
• Type of carrier: Compact excavator; Backhoe loader
