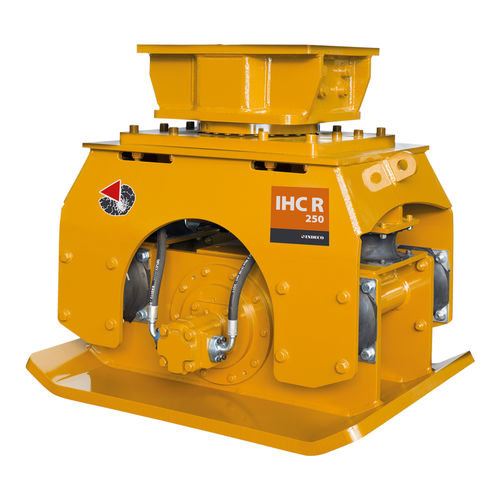

Power vibratory plate IHC R 250

for excavators

Short description
Hydraulic compactor attachment for excavators — IHC R 250, for soil compaction and vibrating operations with hydraulic rotation and adjustable settings.

Overview
Heavy-duty compactor designed for excavators with operating weight 16 ÷ 45 ton. Features adjustable compaction levels, hydraulic rotation and compatibility with Indeco mounting brackets. Baseplate size 90 x 122 cm.

Technical specifications

• Excavator weight: 16 ÷ 45 ton
• Equipment weight*: 1520 Kg
• Height: 110 cm
• Baseplate size: 90 x 122 cm
• Centrifugal force: 17000 Kg – 167 KN
• Compacting force (Min - Med - Max): 1.3 - 1.7 - 2.2 Kg/cm² (12.8 - 16.7 - 21.6 N/cm²)
• Frequency (Min - Med - Max): 1800 - 2100 - 2400 rpm (30 - 35 - 40 Hz)
• Oil flow to motor: 190 ÷ 265 l/min
• Maximum working pressure adjusted to the excavator: 170 bar
• Maximum backpressure: 7 bar
• Oil delivery for rotation: 10 l/min
• Pressure regulated for rotation: 90 bar
• Compatibility of attachment plate with mounting bracket: HP 2000 - HP 2500

Compatible carriers

• Wheeled excavator
• Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data are indicative and subject to change.

Features / technical specifications

• Excavator weight: 16 ÷ 45 ton
• Equipment weight*: 1520 Kg
• Height: 110 cm
• Baseplate size: 90 x 122 cm
• Centrifugal force: 17000 Kg – 167 KN
• Compacting force (Min - Med - Max): 1.3 - 1.7 - 2.2 Kg/cm²
• Frequency (Min - Med - Max): 1800 - 2100 - 2400 rpm
• Oil flow to motor: 190 ÷ 265 l/min
• Maximum working pressure: 170 bar
• Maximum backpressure: 7 bar
• Rotation oil flow: 10 l/min
• Rotation pressure: 90 bar
• Attachment compatibility: HP 2000 - HP 2500
