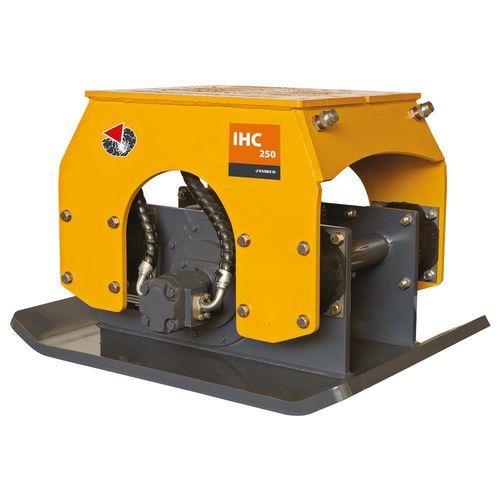

Fixed vibratory plate IHC 250

for excavators

Product
Compactor attachment for excavators
Model: IHC 250
Series: IHC

Technical specifications

• Excavator weight: 15 ÷ 45 t
• Equipment operating weight*: 1280 Kg
• Height: 80 cm
• Baseplate size: 90 x 122 cm
• Centrifugal force: 17000 Kg – 167 KN
• Compacting force (Min - Med - Max): 1.3 - 1.7 - 2.2 Kg/cm² (12.8 - 16.7 - 21.6 N/cm²)
• Frequency (Min - Med - Max): 1800 - 2100 - 2400 rpm (30 - 35 - 40 Hz)
• Oil flow to motor: 190 ÷ 265 l/min
• Maximum working pressure (adjusted to the excavator): 170 bar
• Maximum backpressure: 7 bar
• Compatibility of attachment plate with mounting bracket: HP 2000 - HP 2500; HP 3000 ÷ HP 4000
• Type of carrier:
  • Wheeled excavator
  • Tracked excavator

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.

Disclaimer
All illustrations and numerical data in this catalog are purely indicative and may be modified without notice for product improvement and development.
