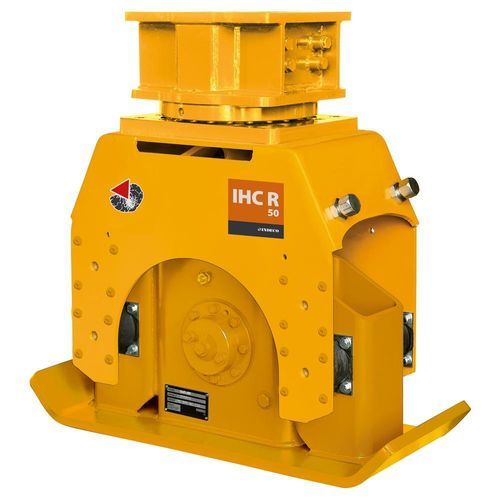

Power vibratory plate IHC R 50

for excavatorscompacting

Product overview
The IHC R 50 is a hydraulic compactor from the IHC R series, designed for soil compaction with compact excavators and backhoe loaders. It features a baseplate sized 30.5 x 76 cm and is suitable for carriers weighing between 3.5 and 13 tonnes.

Compatible carriers

• Compact excavator
• Backhoe loader

Technical specifications

• Excavator weight: 3.5 ÷ 13 ton
• Equipment weight*: 425 Kg
• Height: 88 cm
• Baseplate size: 30.5 x 76 cm
• Centrifugal force: 3000 Kg – 29.5 KN
• Compacting force (Min - Med - Max): 0.8 - 1.2 - 1.7 Kg/cm² (7.8 - 11.8 - 16.7 N/cm²)
• Frequency (Min - Med - Max): 2000 - 2500 - 3000 rpm (33 - 42 - 50 Hz)
• Oil flow to motor: 45 ÷ 70 l/min
• Maximum working pressure adjusted to the excavator: 240 bar
• Maximum backpressure: 7 bar
• Oil delivery for rotation: 10 l/min
• Pressure regulated for rotation: 90 bar
• Compatibility of attachment plate: HP 900

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are indicative and subject to change without notice. We reserve the right to modify them to improve and develop the product.
