Excavator vibratory plate IHC 150

compacting

Product

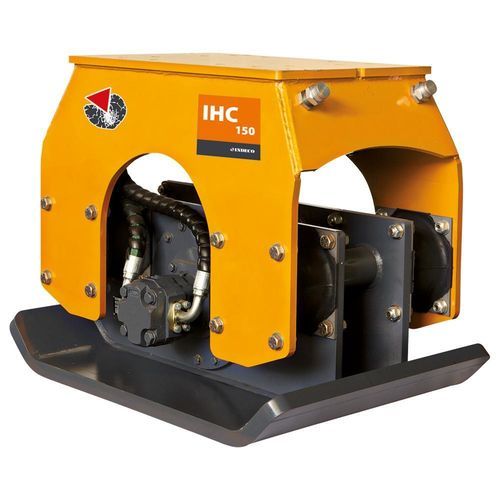

Hydraulic compactor IHC 150, IHC series.

Overview
Hydraulic compactor designed to be mounted on excavator carriers for soil and asphalt compaction. Compatible with both wheeled and tracked excavators. Delivers high centrifugal force and adjustable operating frequency for demanding compaction tasks.

Applications & compatibility

• Carrier types: Wheeled excavators
• Carrier types: Tracked excavators
• Attachment plate compatibility: HP 1500 - HP 1800

Technical data (summary)

• Excavator weight: 8 ÷ 22 ton
• Equipment weight*: 970 Kg
• Height: 79 cm
• Baseplate size: 71 x 120 cm
• Centrifugal force: 10000 Kg – 98 KN
• Compacting force (Min - Med - Max): 1,4 - 1,6 - 1,8 Kg/cm² (13,7 - 15,7 - 17,7 N/cm²)
• Frequency (Min - Med - Max): 1800 - 1950 - 2100 rpm (30 - 33 - 35 Hz)
• Oil flow to motor: 100 ÷ 120 l/min
• Maximum working pressure: 200 bar
• Maximum backpressure: 21 bar
• Attachment plate compatibility: HP 1500 - HP 1800
• Carrier types: Wheeled and Tracked excavators

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are indicative and subject to change at the manufacturer's discretion without notice.
