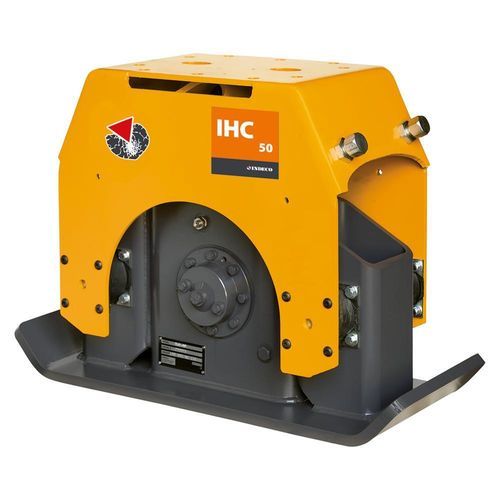

Fixed vibratory plate IHC 50

for excavatorscompacting

Product
Hydraulic compactor IHC 50 for compact excavators and backhoe loaders. Designed for soil compaction operations with a baseplate sized 30.5 x 76 cm and compatibility with HP 400 attachment plate.

Technical Specifications

• Excavator weight: 1.7 ÷ 8 ton
• Equipment weight*: 200 kg
• Height: 56 cm
• Baseplate size: 30.5 x 76 cm
• Centrifugal force: 3000 kg – 29.5 kN
• Compacting force (Min - Med - Max): 0.8 - 1.2 - 1.7 kg/cm² (7.8 - 11.8 - 16.7 N/cm²)
• Frequency (Min - Med - Max): 2000 - 2500 - 3000 rpm (33 - 42 - 50 Hz)
• Oil flow to motor: 45 ÷ 70 l/min
• Maximum working pressure adjusted to the excavator: 240 bar
• Maximum backpressure: 7 bar
• Compatibility of attachment plate with mounting bracket: HP 400

Types of carrier

• Compact excavator
• Backhoe loader

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Characteristics / technical specifications

• Excavator weight: 1.7 ÷ 8 ton
• Equipment weight*: 200 kg
• Height: 56 cm
• Baseplate size: 30.5 x 76 cm
• Centrifugal force: 3000 kg – 29.5 kN
• Compacting force (Min - Med - Max): 0.8 - 1.2 - 1.7 kg/cm² (7.8 - 11.8 - 16.7 N/cm²)
• Frequency (Min - Med - Max): 2000 - 2500 - 3000 rpm (33 - 42 - 50 Hz)
• Oil flow to motor: 45 ÷ 70 l/min
• Maximum working pressure adjusted to the excavator: 240 bar
• Maximum backpressure: 7 bar
• Compatibility of attachment plate: HP 400
• Applicable to: compact excavator; backhoe loader
